2.10.2 I/O Shield
The back panel I/O shield for the boards must meet specific dimension and material requirements.
Systems based on these boards need the back panel I/O shield to pass certification testing.
Figure 21 shows the I/O shield. Dimensions are given in inches to a tolerance of ±0.02 inches.
The figure also indicates the position of each cutout. Additional design considerations for I/O
shields relative to chassis requirements are described in the ATX specification.
NOTE
The I/O shield drawing in this document is for reference only. An I/O shield compliant with the
ATX chassis specification 2.03 is available from Intel.
OM17812
Pictorial
View
20. ± 0.254 TYP
[0.787 ± 0.10]
162.3 REF
[6.390]
159.2 ± 0.12
[6.268 ± 0.005]
1.6 ± 0.12
[0.063 ± 0.005]
1.55 REF
[0.061]
12.00
[0.472]
7.012
[0.276]
Ø 1.00
[0.039]
0.00
[0.00]
11.811
[0.465]
22.45
[0.884]
9.44
[0.372]
21.13
[0.832]
0.00
[0.00]
27.876
[1.097]
120.81
[4.756]
102.84
[4.049]
142.12
[5.595]
57.206
[2.252]
8x R 0.5 MIN
11.81
[0.465]
14.4
[0.567]
A
A

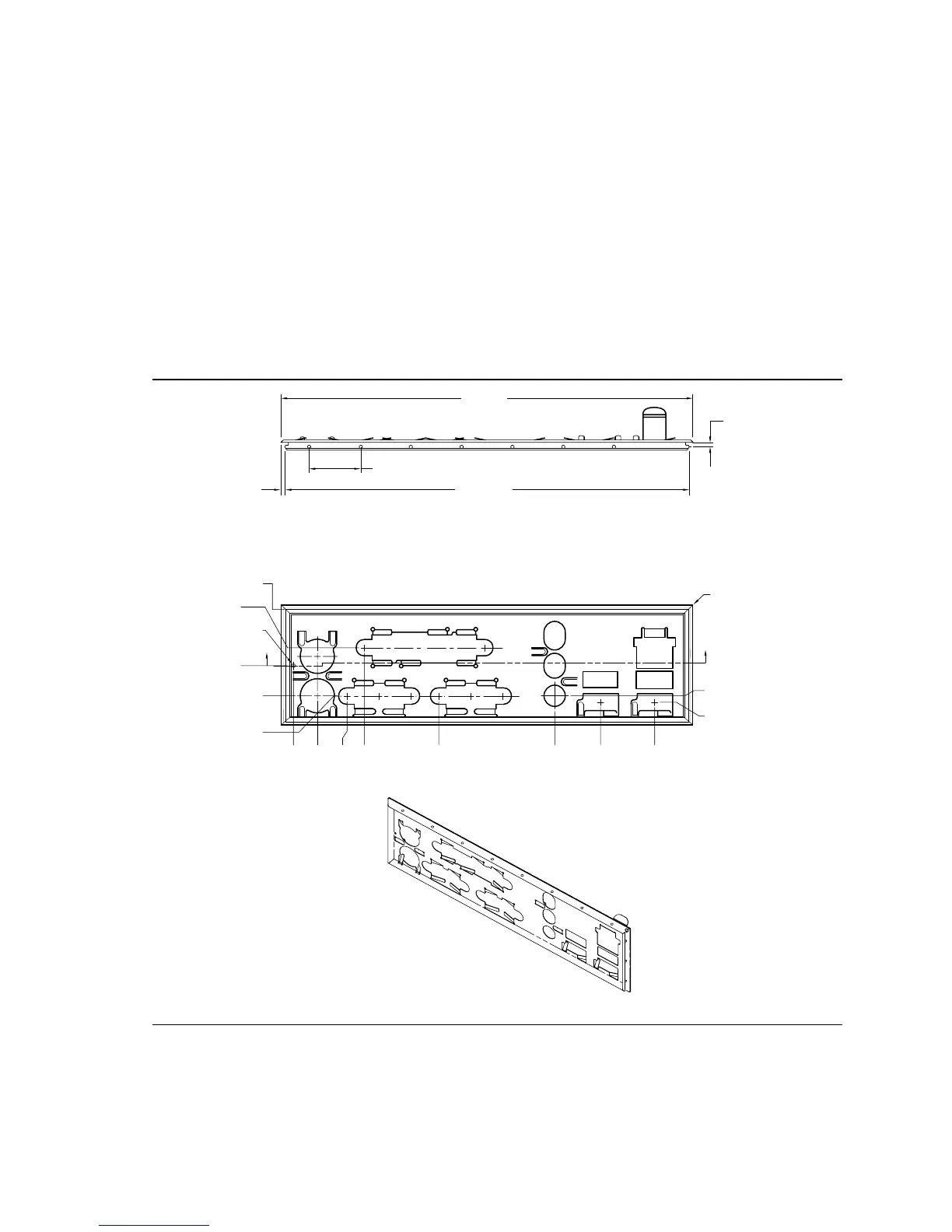

Figure 21. I/O Shield Dimensions
