2.8.1 Back Panel Connectors
Figure 15 shows the location of the back panel connectors. The back panel connectors are
color-coded. The figure legend (Table 15) lists the colors used (when applicable).
OM17808
A
B
J
F
C
KIGD E H

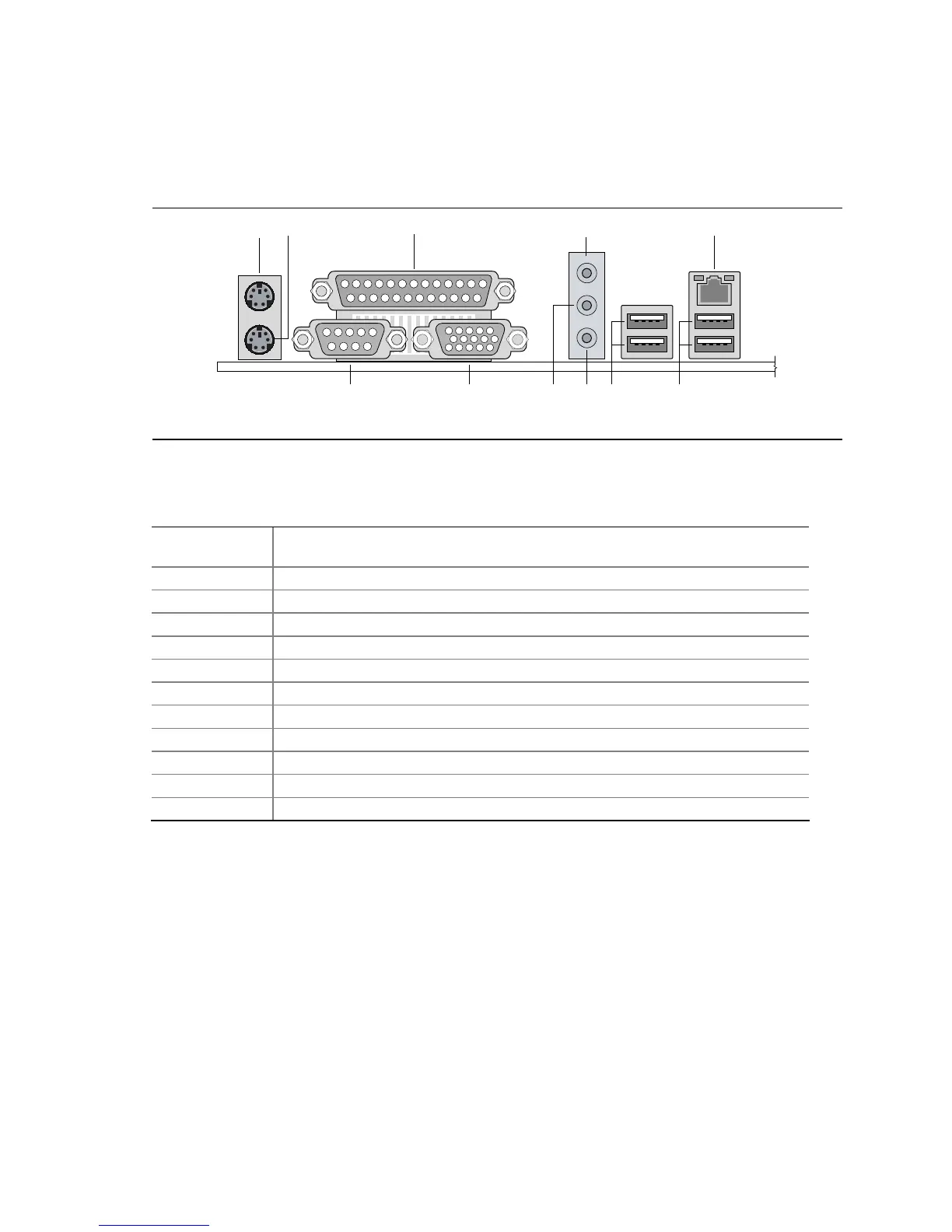

Figure 15. Back Panel Connectors
Table 15. Back Panel Connectors Shown in Figure 15
Item/callout
from Figure 15 Description
A
PS/2 mouse port (Green)
B
PS/2 keyboard port (Purple)
C
Parallel port (Burgundy)
D
Serial port A (Teal)
E
VGA port
F
Audio line in/Retasking Port C (Light blue)
G
Audio line out/Retasking Port D (Lime Green)
H Mic in/Retasking Port B (Pink)
I
USB ports (two)
J
LAN
K USB ports (two)

NOTE
The back panel audio line out connector is designed to power headphones or amplified speakers
only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.
