Installing and Replacing Desktop Board Components
31
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 12). A fan with a 4-pin connector as shown in Figure 12, A is recommended;
however, a fan with a 3-pin connector (
Figure 12, B) can be used. Since the 3-pin fan
cannot use the onboard fan control, the fan will always operate at full speed.

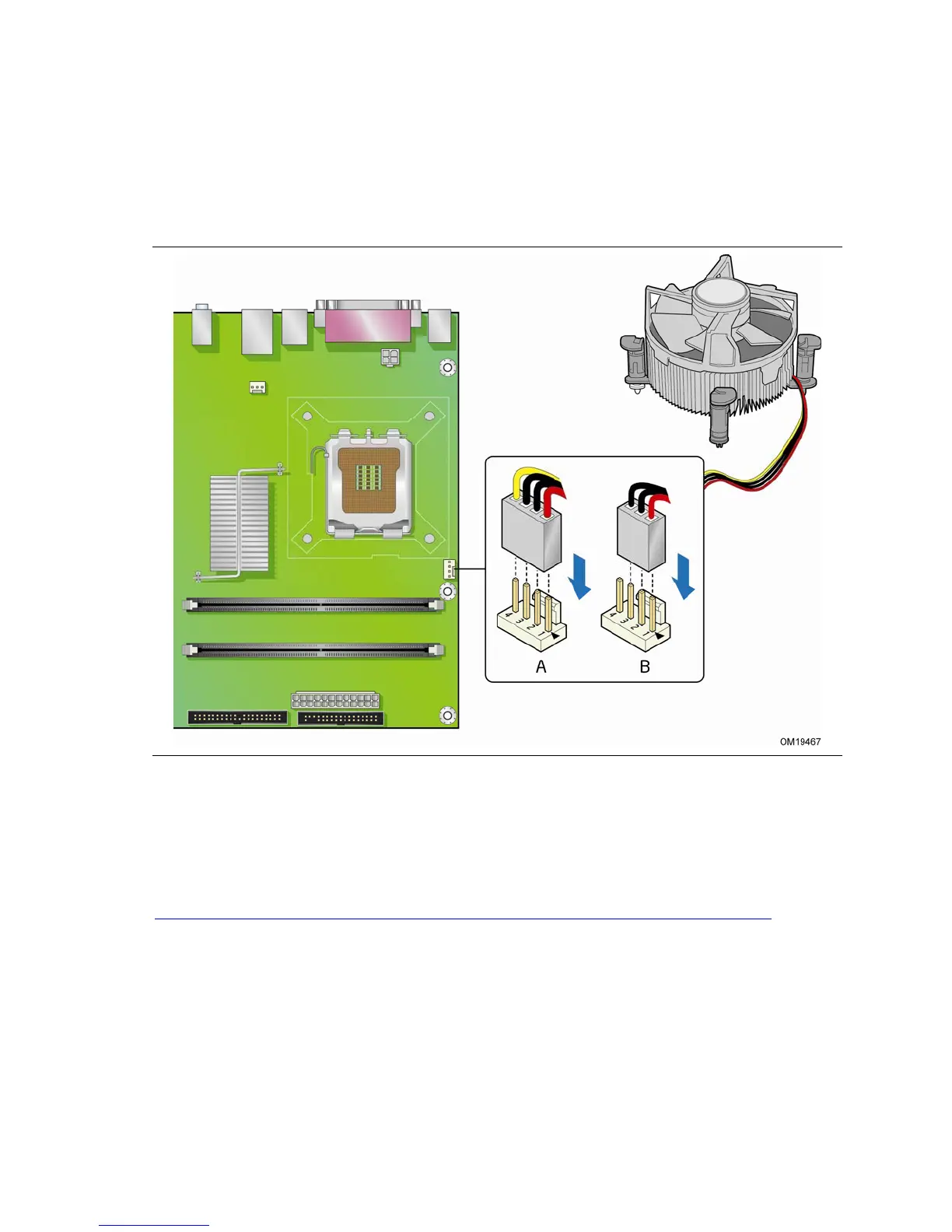

Figure 12. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual or the Intel World Wide Web site at:
1Integration of the Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
