Other Connectors and Headers
Figure 24 shows the location of the other connectors and headers on the desktop
board.
Item Description
A PCI bus connector 2
B PCI bus connector 1
C PCI Express x1 connector
D Diskette drive connector
E Chassis intrusion header

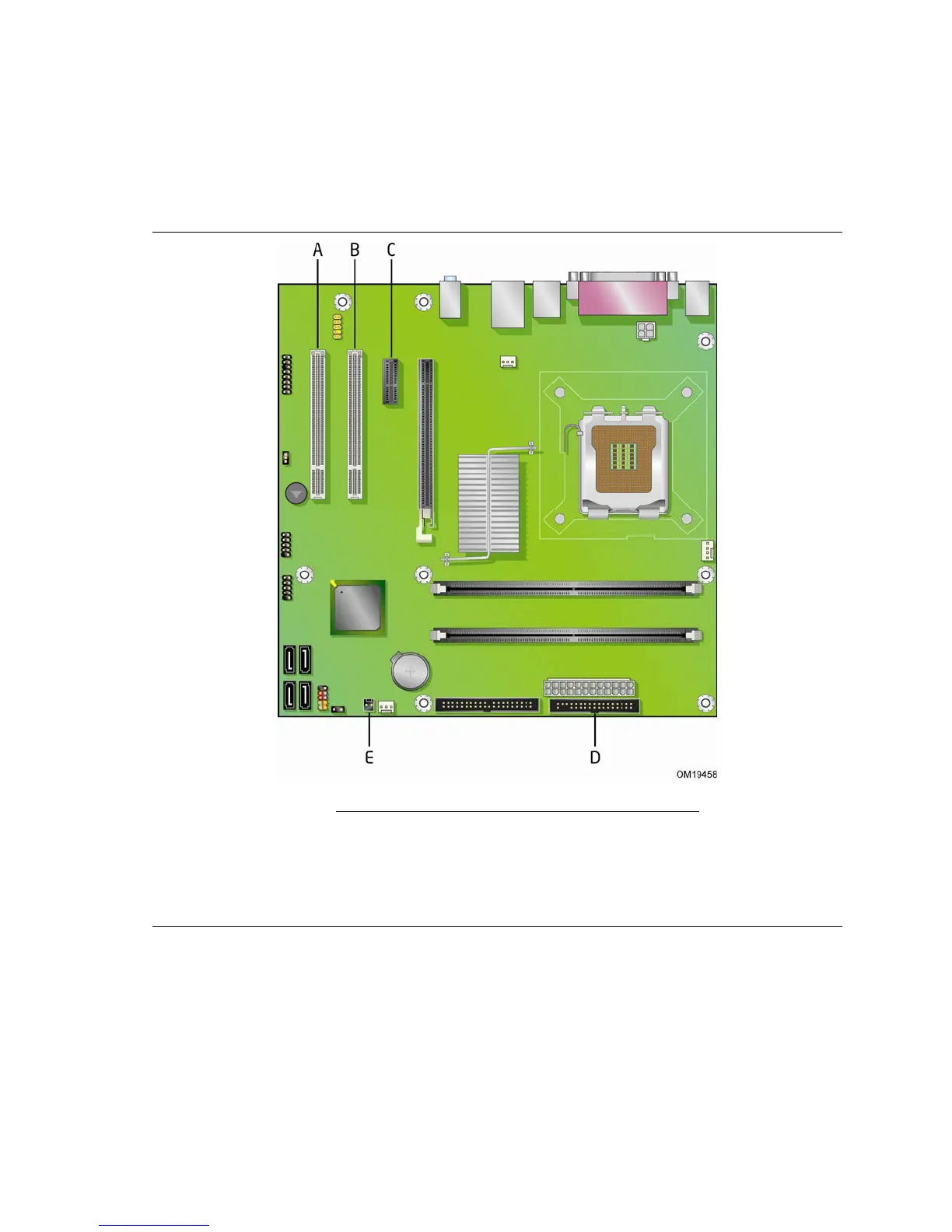

Figure 24. Location of Other Connectors and Headers
