Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure. You can
access the PC Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda18c32_64_128x72ag_a.pdf
The desktop board has two 240-pin DDR2 DIMM sockets providing Channel A and
Channel B. For dual-channel performance, install a matched pair of DIMMs equal in
speed and size (see
Figure 13).

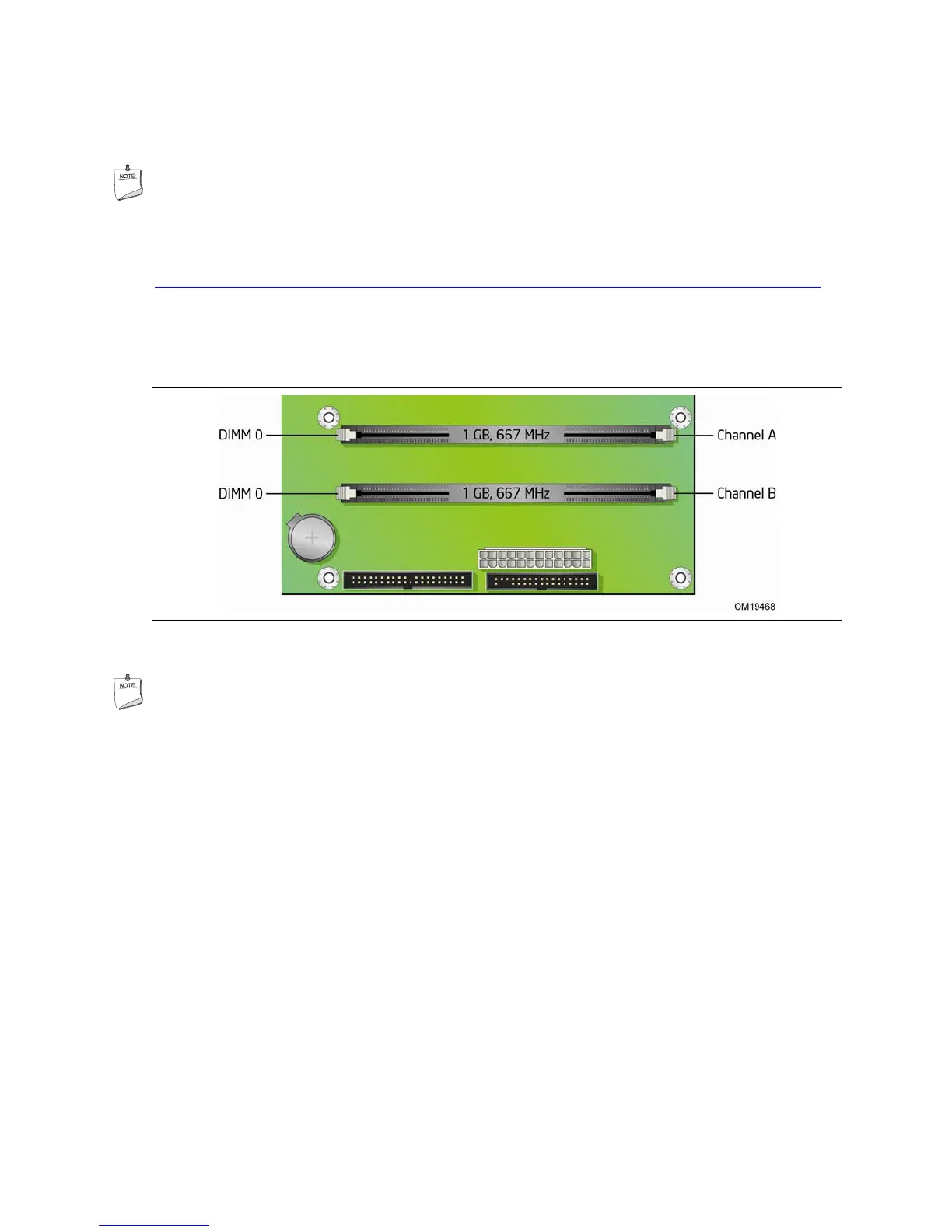

Figure 13. Dual Channel Memory Configuration Example
NOTE
All other memory configurations will result in single channel memory operation.

Intel D946GZIS - Desktop Board Motherboard Specifications

General

Form Factor	ATX
Chipset	Intel 946GZ
Processor Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Integrated Graphics	Intel Graphics Media Accelerator 3000
USB Ports	8 x USB 2.0
Video Outputs	VGA
LAN	10/100/1000 Mbps
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
