Intel D946GZIS - Desktop Board Motherboard User Manual

Installing and Replacing Desktop Board Components
49
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program.
Table 10 shows the jumper settings for the BIOS Setup
program modes.

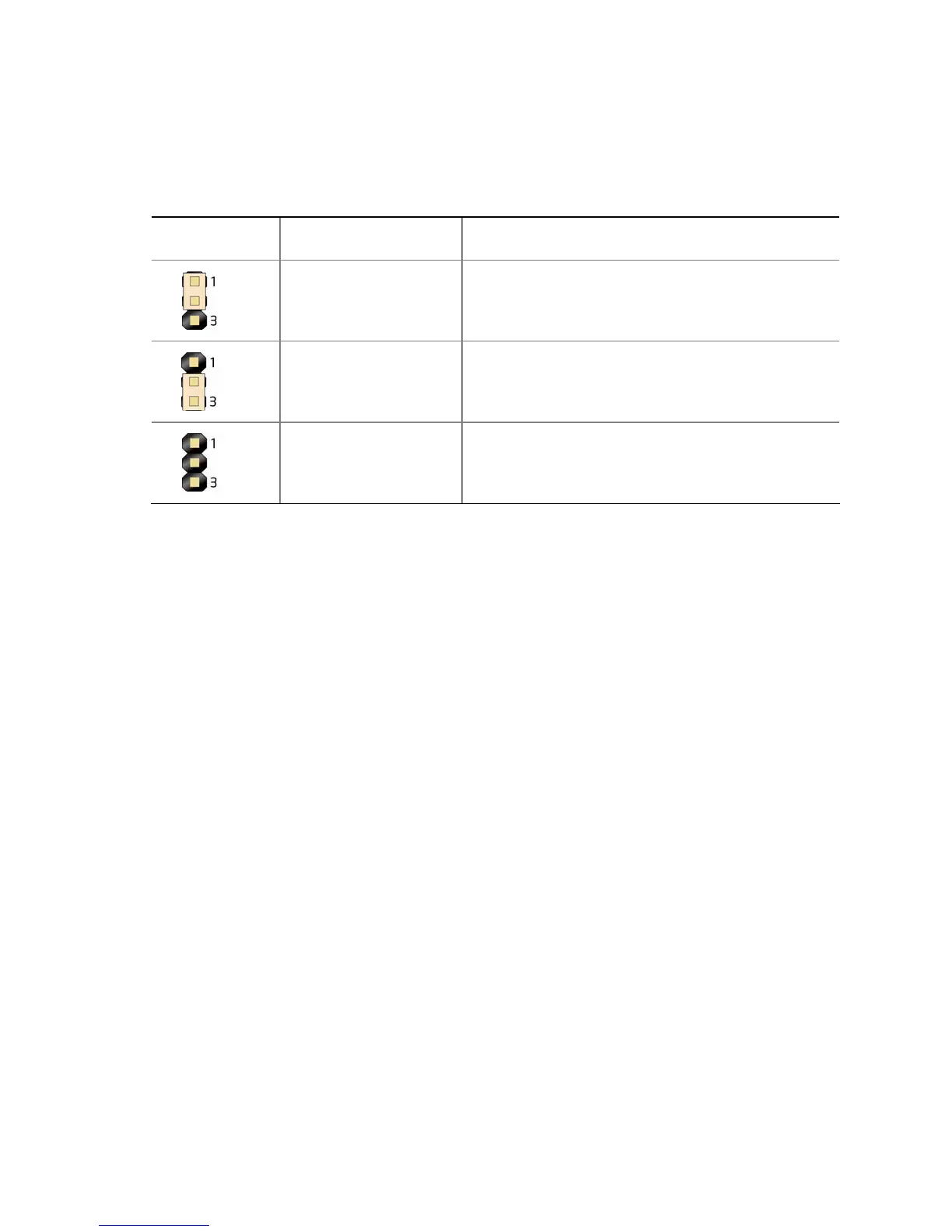

Table 10. Jumper Settings for the BIOS Setup Program Modes
Jumper
Setting Mode Description
Normal (default) (1-2) The BIOS uses the current configuration and
passwords for booting.
Configure (2-3) After the Power-On Self-Test (POST) runs, the
BIOS displays the Maintenance Menu. Use this
menu to clear passwords.
Recovery (None) The BIOS recovers data in the event of a failed
BIOS update.

Intel D946GZIS - Desktop Board Motherboard Specifications

General

Form Factor	ATX
Chipset	Intel 946GZ
Processor Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Integrated Graphics	Intel Graphics Media Accelerator 3000
USB Ports	8 x USB 2.0
Video Outputs	VGA
LAN	10/100/1000 Mbps
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
