Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page
23. Figure 20 shows the location of the internal headers.
Item Description
A HD Audio Link
B Front panel audio
C Alternate front panel power LED
D Front panel
E USB 2.0

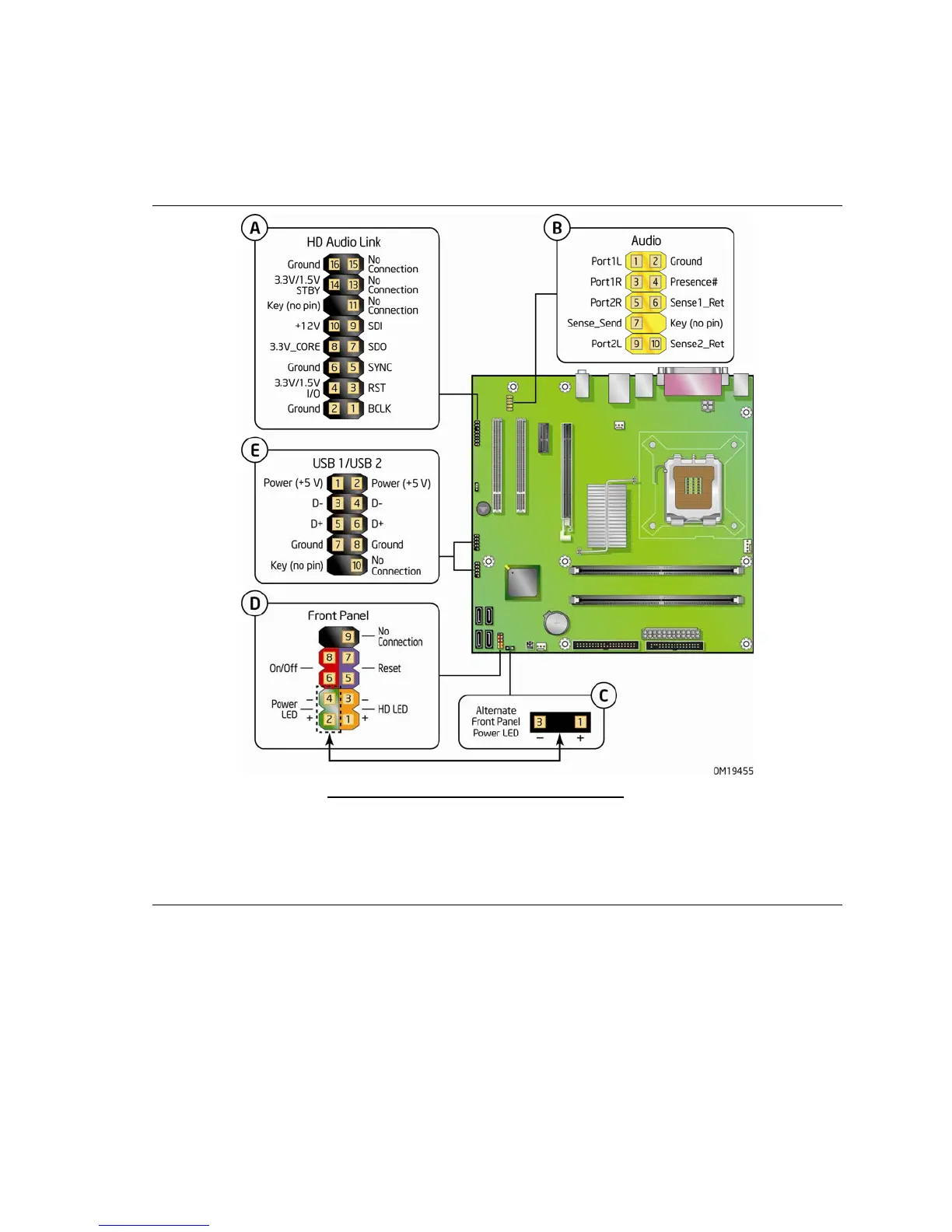

Figure 20. Internal Headers

Intel D946GZIS - Desktop Board Motherboard Specifications

General

Form Factor	ATX
Chipset	Intel 946GZ
Processor Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Integrated Graphics	Intel Graphics Media Accelerator 3000
USB Ports	8 x USB 2.0
Video Outputs	VGA
LAN	10/100/1000 Mbps
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
