Installing and Replacing Desktop Board Components
33

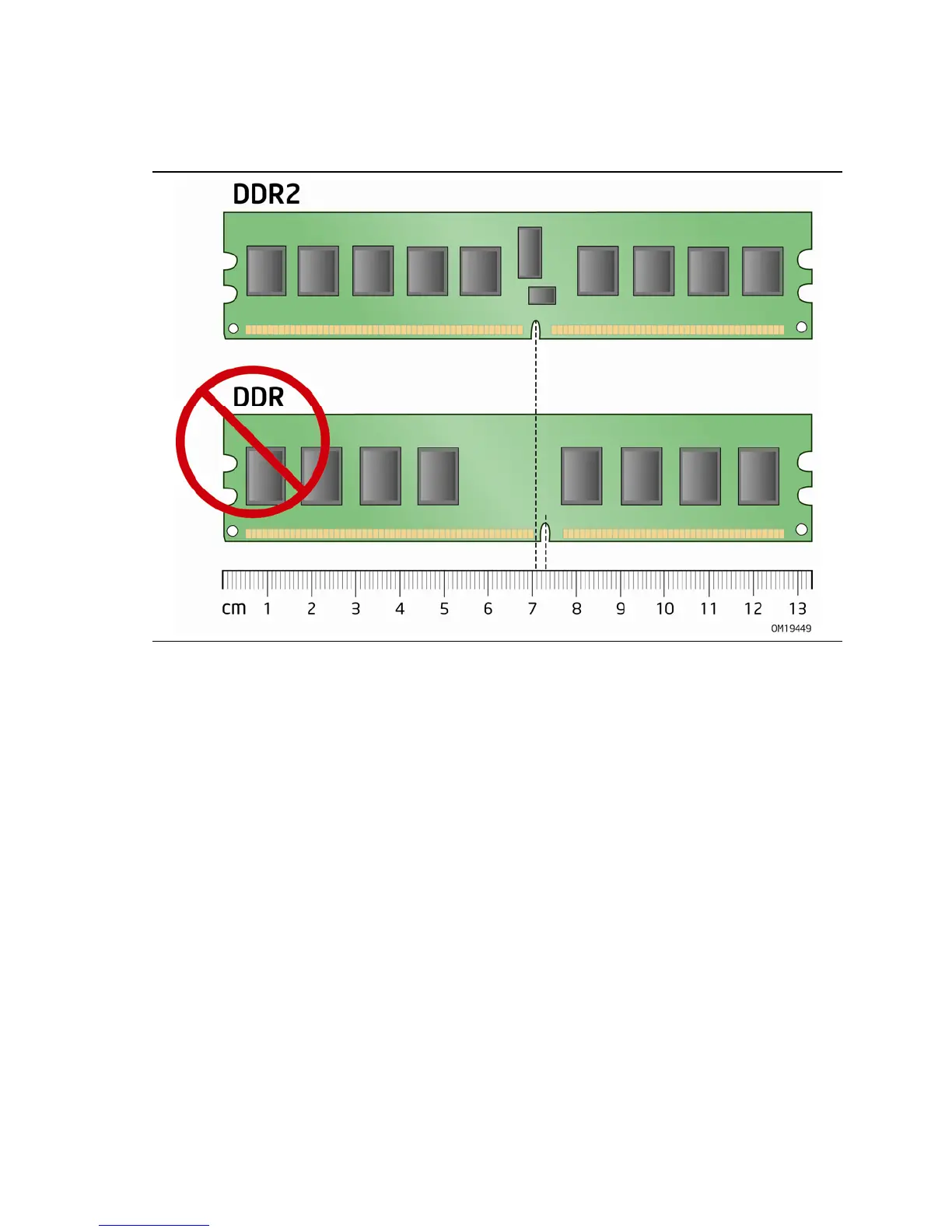

To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in
Figure 14. All the notches should match with the DDR2 DIMM.
Figure 14. Use DDR2 DIMMs

Intel D946GZIS - Desktop Board Motherboard Specifications

General

Form Factor	ATX
Chipset	Intel 946GZ
Processor Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Integrated Graphics	Intel Graphics Media Accelerator 3000
USB Ports	8 x USB 2.0
Video Outputs	VGA
LAN	10/100/1000 Mbps
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
