Intel Desktop Board D946GZIS Product Guide
48
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 25 shows the location of the desktop board’s BIOS configuration jumper block.

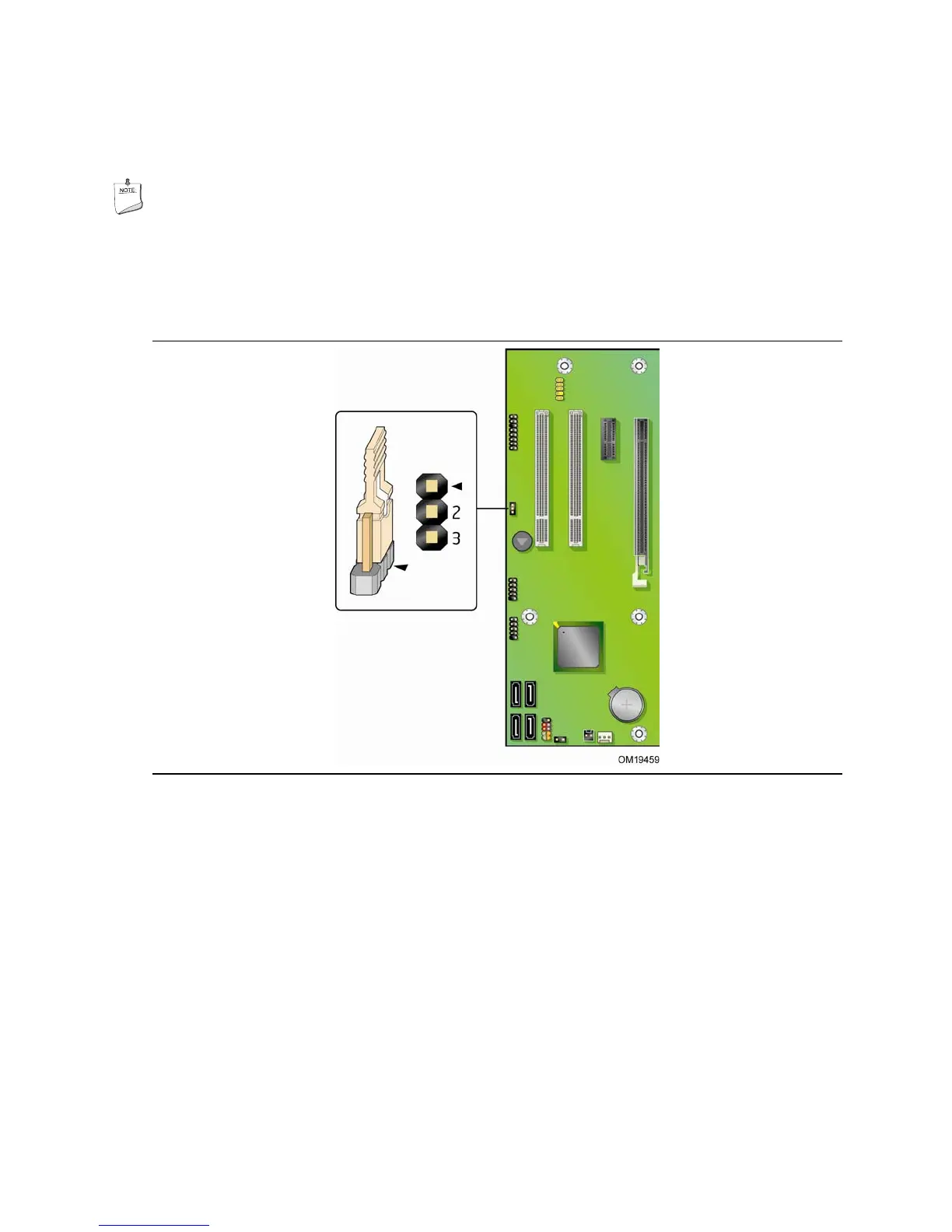

Figure 25. Location of the BIOS Configuration Jumper Block
