Intel Desktop Board DG33BU Technical Product Specification
18

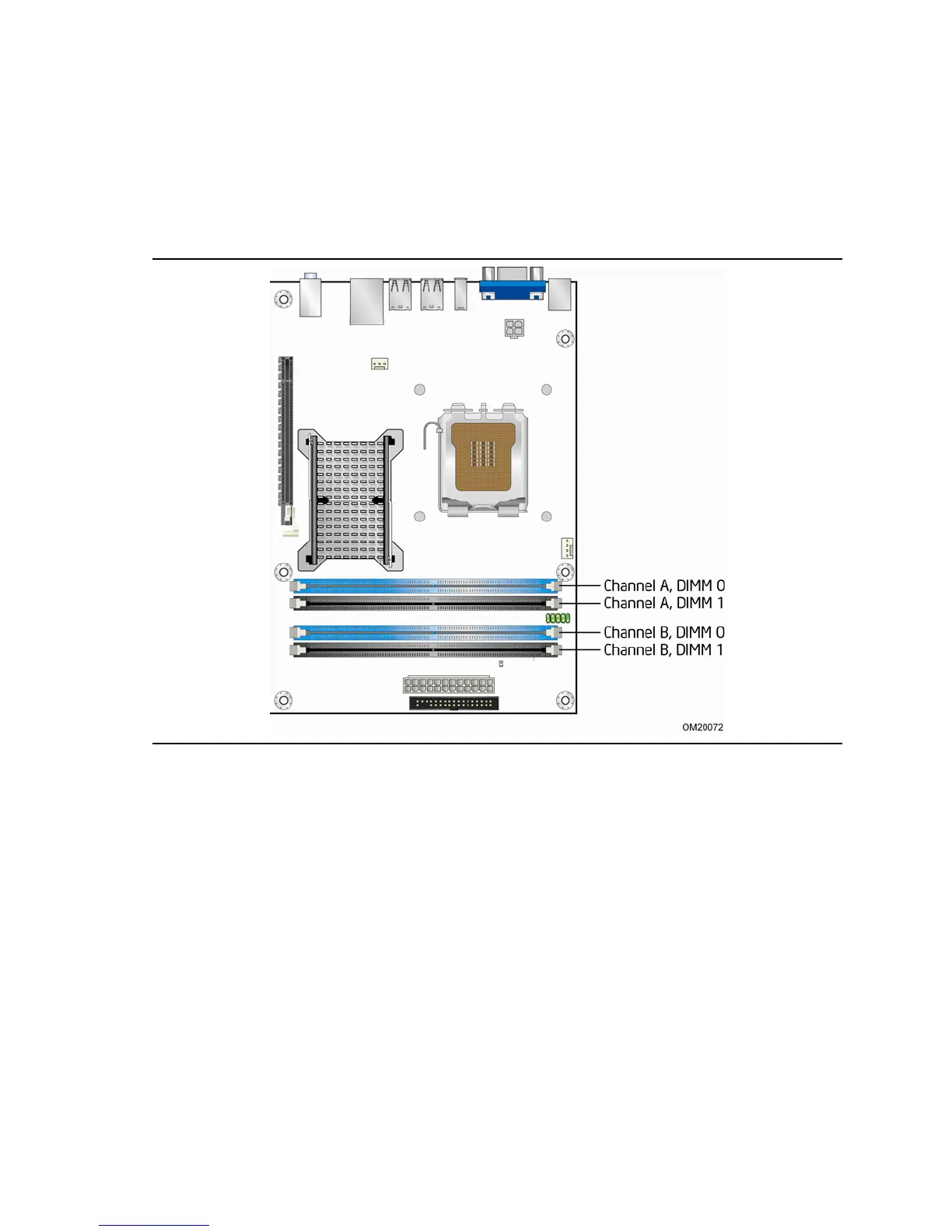

Figure 3 illustrates the memory channel and DIMM configuration.

NOTE
The DIMM 0 sockets of both channels are blue. The DIMM 1 sockets of both channels
are black.
Figure 3. Memory Channel Configuration and DIMM Configuration
#
INTEGRATOR’S NOTE
Regardless of the memory configuration used (dual channel, single channel, or flex
mode), DIMM 0 of Channel A must always be populated. This is a requirement of the
Intel Management Engine in ICH9DH.

Intel DG33BU Specifications

General

Form Factor	ATX
Chipset	Intel G33
Socket	LGA 775
Memory Type	DDR2
Maximum Memory	8 GB
Memory Slots	4
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	1 x PCI Express x16, 3 x PCI
USB Ports	8 x USB 2.0
Audio	Realtek ALC888 HD Audio
LAN	Intel 82566DC Gigabit Ethernet
Video Outputs	VGA
Memory Standard	DDR2 667/800
SATA Ports	4 x SATA 3Gb/s
