Intel Desktop Board DG33BU Technical Product Specification
36
1.13.2.9 +5 V Standby Power Indicator LED
The +5 V standby power indicator LED shows that power is still present even when the
computer appears to be off. Figure 7 shows the location of the standby power
indicator LED.
CAUTION
If AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.

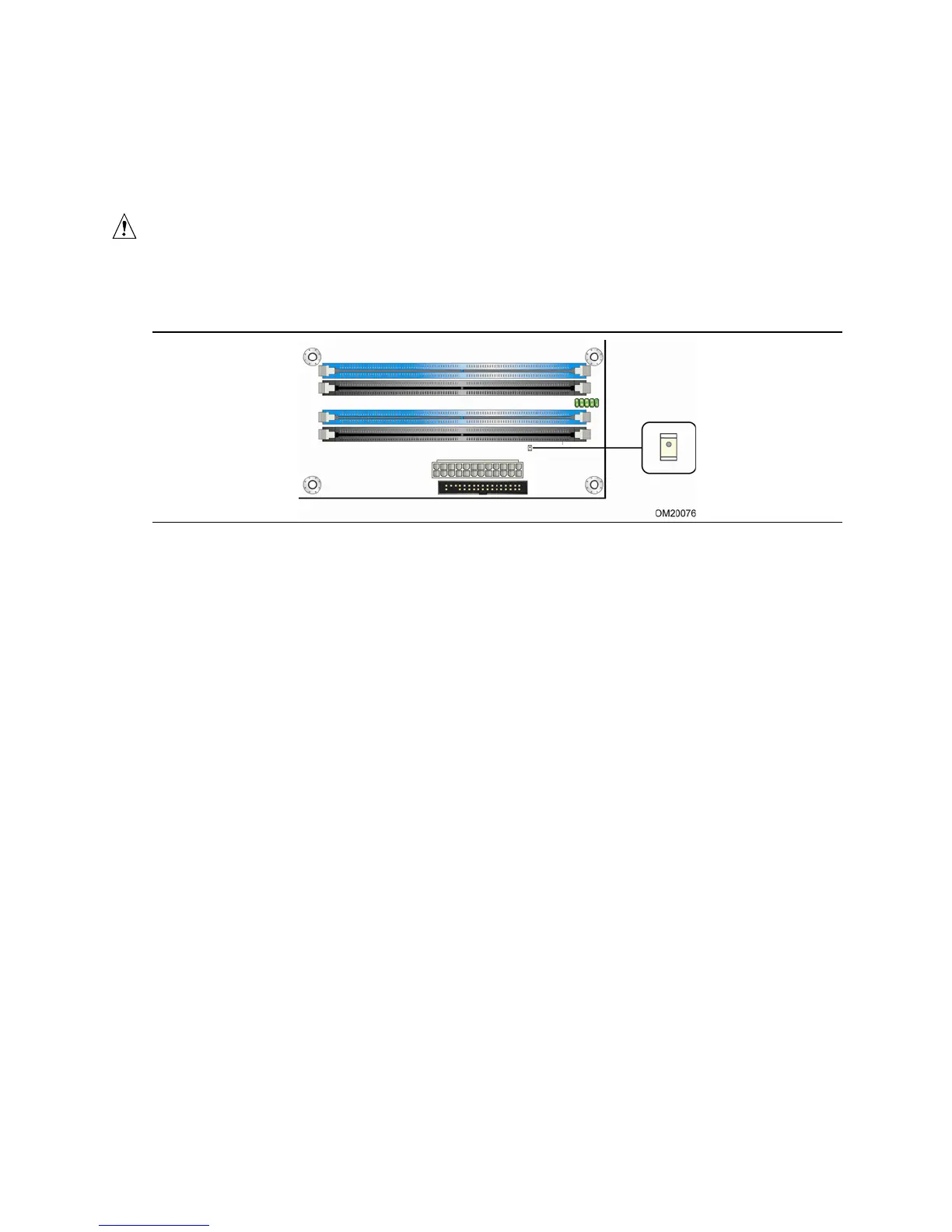

Figure 7. Location of the Standby Power Indicator LED

Intel DG33BU Specifications

General

Form Factor	ATX
Chipset	Intel G33
Socket	LGA 775
Memory Type	DDR2
Maximum Memory	8 GB
Memory Slots	4
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	1 x PCI Express x16, 3 x PCI
USB Ports	8 x USB 2.0
Audio	Realtek ALC888 HD Audio
LAN	Intel 82566DC Gigabit Ethernet
Video Outputs	VGA
Memory Standard	DDR2 667/800
SATA Ports	4 x SATA 3Gb/s
