Intel Desktop Board DG33BU Technical Product Specification
54
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (shown in Figure 15) can reach a temperature of up to 95
o
C in
an open chassis.

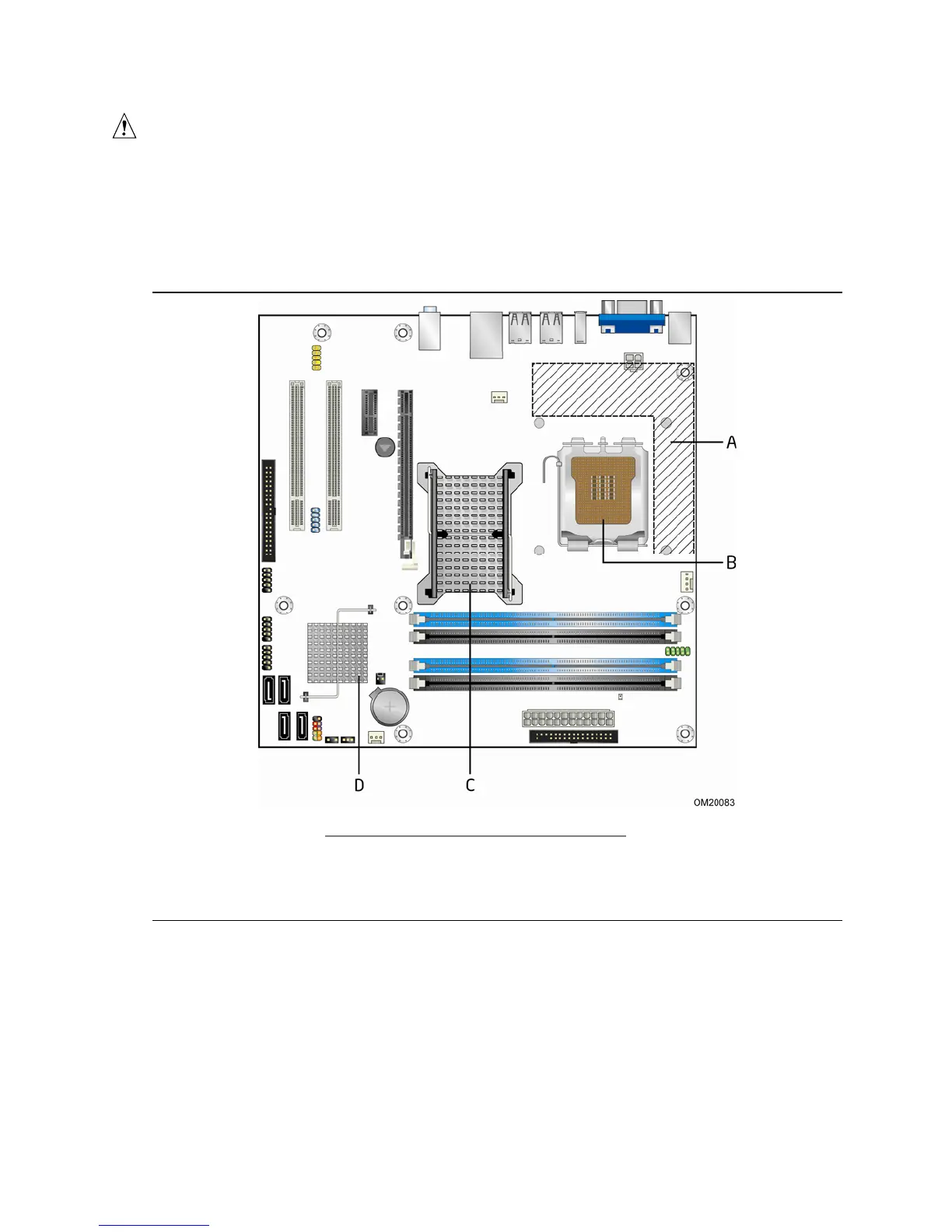

Figure 15 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel 82G33 GMCH
D Intel 82801IH (ICH9DH)
Figure 15. Localized High Temperature Zones

Intel DG33BU Specifications

General

Form Factor	ATX
Chipset	Intel G33
Socket	LGA 775
Memory Type	DDR2
Maximum Memory	8 GB
Memory Slots	4
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	1 x PCI Express x16, 3 x PCI
USB Ports	8 x USB 2.0
Audio	Realtek ALC888 HD Audio
LAN	Intel 82566DC Gigabit Ethernet
Video Outputs	VGA
Memory Standard	DDR2 667/800
SATA Ports	4 x SATA 3Gb/s
