Intel DG33BU User Manual

Product Description
29
1.12.4 Thermal Monitoring

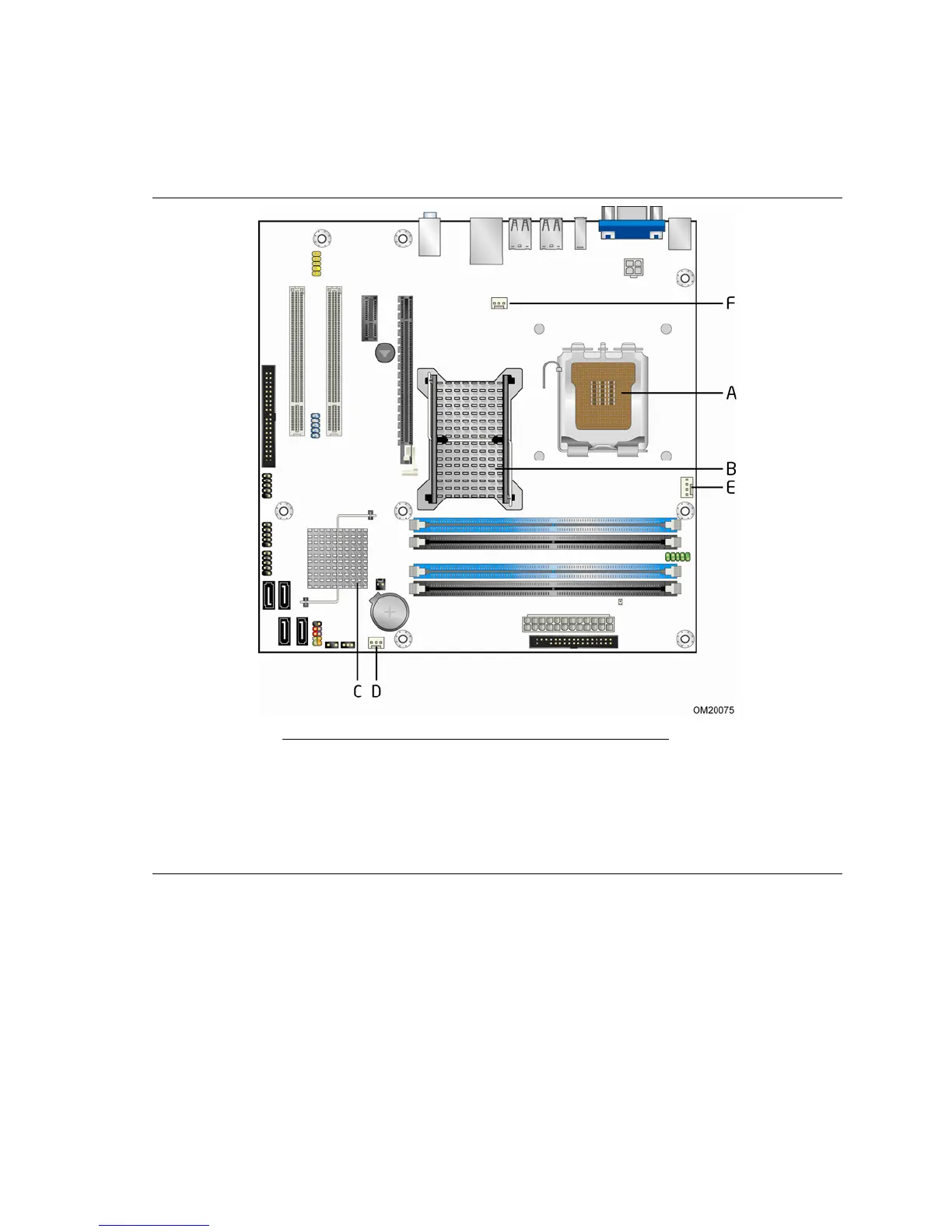

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Thermal diode, located on processor die
B Thermal diode, located on the GMCH die
C Thermal diode, located on the ICH9DH die
D Front chassis fan
E Processor fan
F Rear chassis fan
Figure 6. Thermal Sensors and Fan Headers

NOTE
The minimum thermal reporting threshold for the GMCH is 66°C. The GMCH thermal
sensor will display 66°C until the temperature rises above this point.

Intel DG33BU Specifications

General

Form Factor	ATX
Chipset	Intel G33
Socket	LGA 775
Memory Type	DDR2
Maximum Memory	8 GB
Memory Slots	4
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Expansion Slots	1 x PCI Express x16, 3 x PCI
USB Ports	8 x USB 2.0
Audio	Realtek ALC888 HD Audio
LAN	Intel 82566DC Gigabit Ethernet
Video Outputs	VGA
Memory Standard	DDR2 667/800
SATA Ports	4 x SATA 3Gb/s
