Intel Desktop Board DG45ID Technical Product Specification
46
2.2.2 Component-side Connectors and Headers
Figure 10 shows the locations of the component-side connectors and headers.

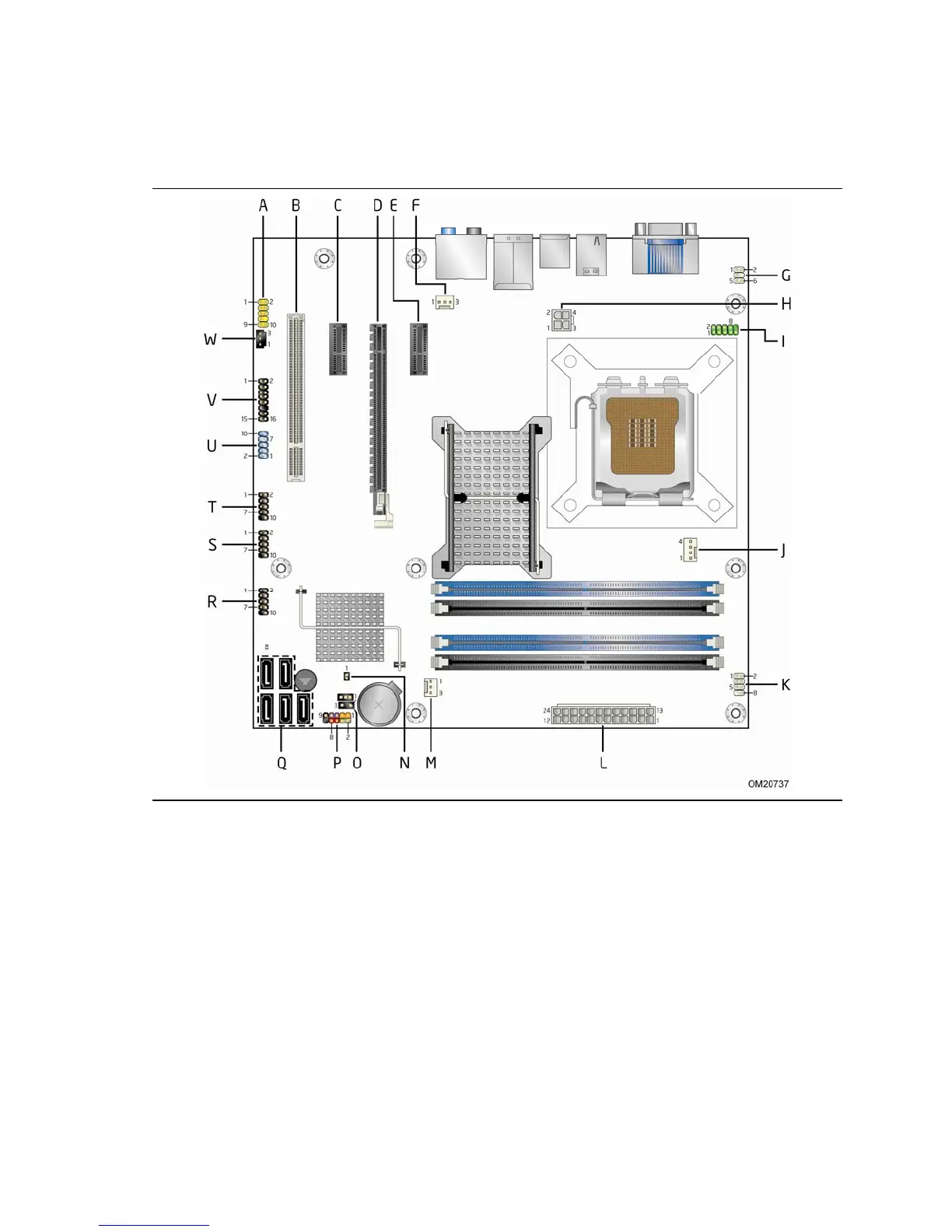

Figure 10. Component-side Connectors and Headers
