Technical Reference
57
2.4
Mechanical Considerations
2.4.1
Form Factor
The board is designed to fit into an ATX-form-factor chassis.
Figure 15 illustrat
es the
mechanical form factor for t
he board. Dimensions are given
in inches [millimeters].
The outer dimensions are 9.60 inches
by 9.60 inches [243.84 millimeters by
243.84 millimeters]. Location of the I/
O connectors and mounting holes are in
compliance with the AT
X specification.

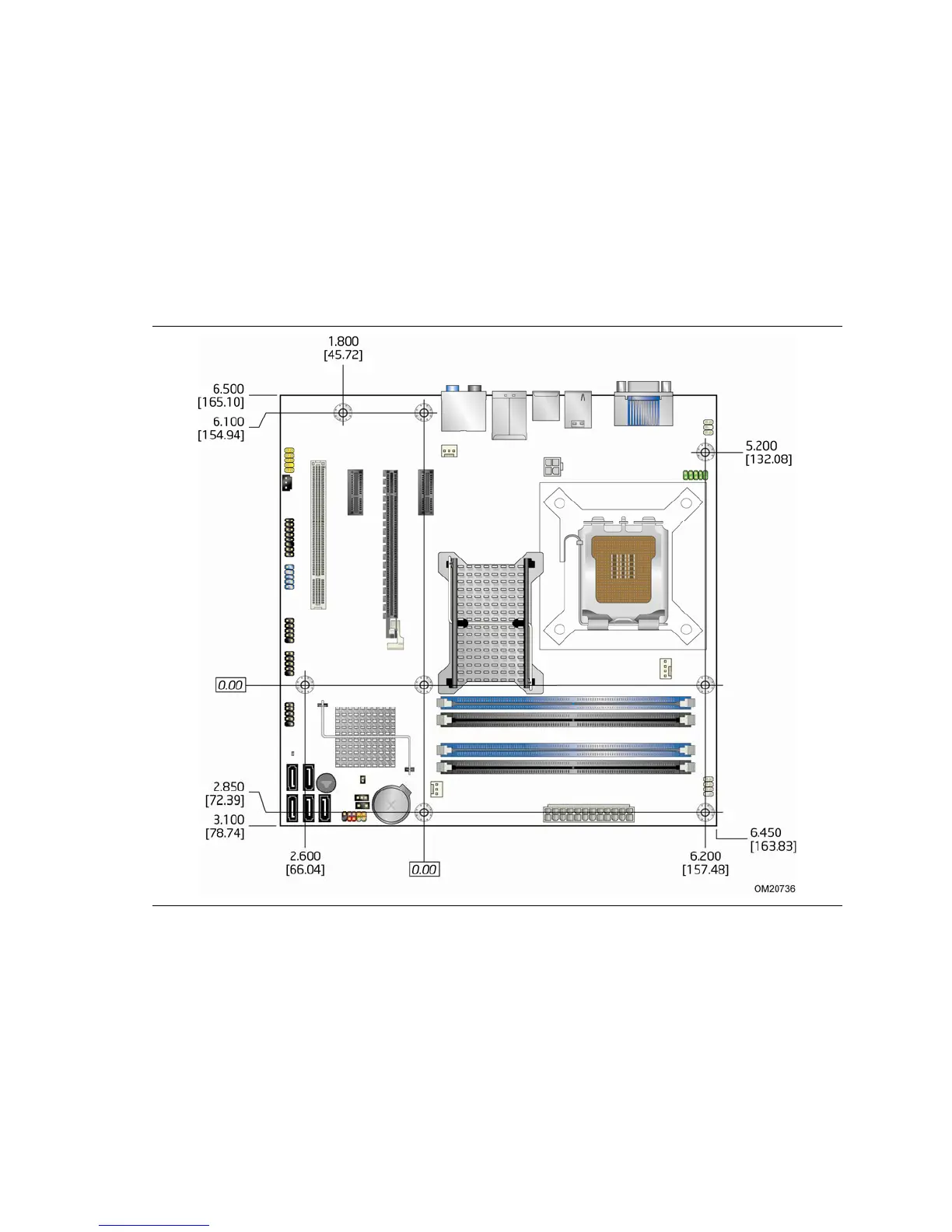

Figure 15. Board Dimensions
56
