Intel Desktop Board DG45ID Technical Product Specification
56

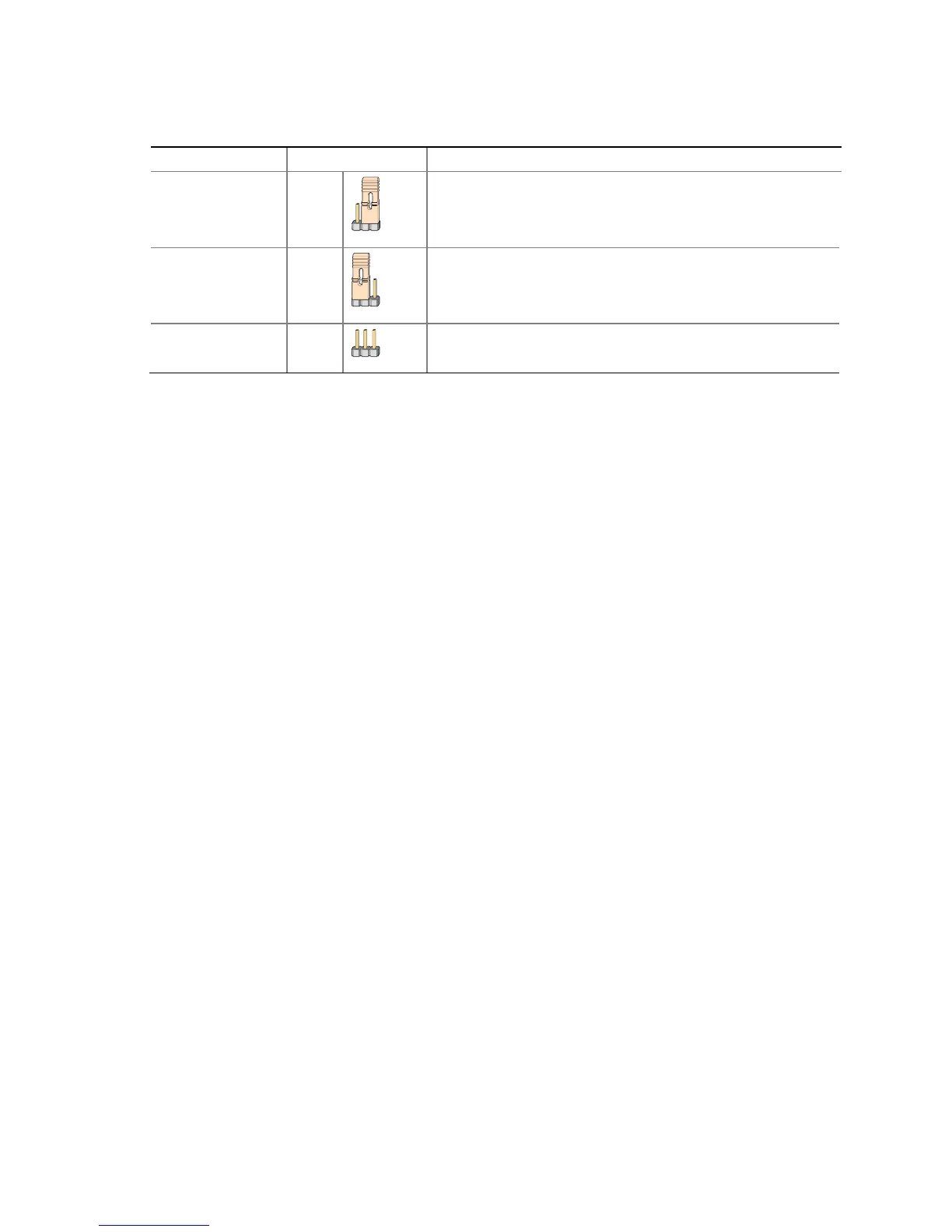

Table 29. BIOS Setup Configuration Jumper Settings
Function/Mode Jumper
Setting
Configuration
Normal 1-2
321
The BIOS uses current configuration information and
passwords for booting.
Configure 2-3
321
After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
Recovery None
321
The BIOS attempts to recover the BIOS configuration. See
Section
3.7 for more information on BIOS recovery.
55
57
