Balanced Technology Extended (BTX) Thermal/Mechanical Design Information

Thermal and Mechanical Design Guidelines 47

5.2.1.1 Random Vibration Test Procedure

Recommended performance requirement for a system:

Duration: 10 min/axis, 3 axes

Frequency Range: 5 Hz to 500 Hz

5 Hz @ .001 g2/Hz to 20 Hz @ 0.01 g2/Hz (slope up)

20 Hz to 500 Hz @ 0.01 g2/Hz (flat)

Power Spectral Density (PSD) Profile: 2.2 G RMS

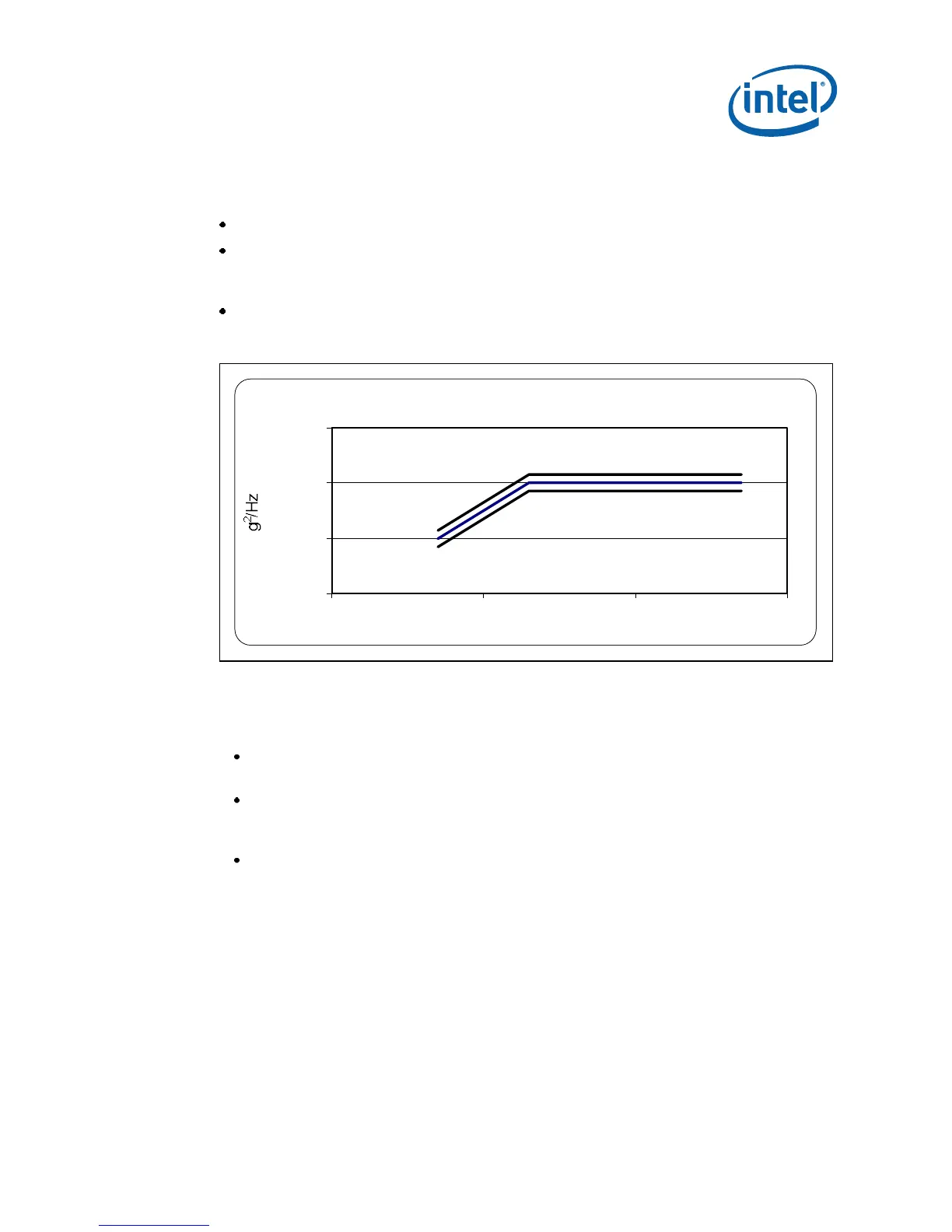

Figure 5-2. Random Vibration PSD

Vibration System Level

0.0001

0.001

0.01

0.1

1 10 100 1000

+ 3 dB Control Limit

- 3 dB Control Limit

5.2.1.2 Shock Test Procedure

Recommended performance requirement for a system:

Quantity: 2 drops for + and - directions in each of 3 perpendicular axes (i.e., total

12 drops).

Profile: 25 G trapezoidal waveform

225 in/sec minimum velocity change. (systems > 20 lbm)

250 in/sec minimum velocity change. (systems < 20 lbm)

Setup: Mount sample system on tester.
