LGA775 Socket Heatsink Loading

Thermal and Mechanical Design Guidelines 77

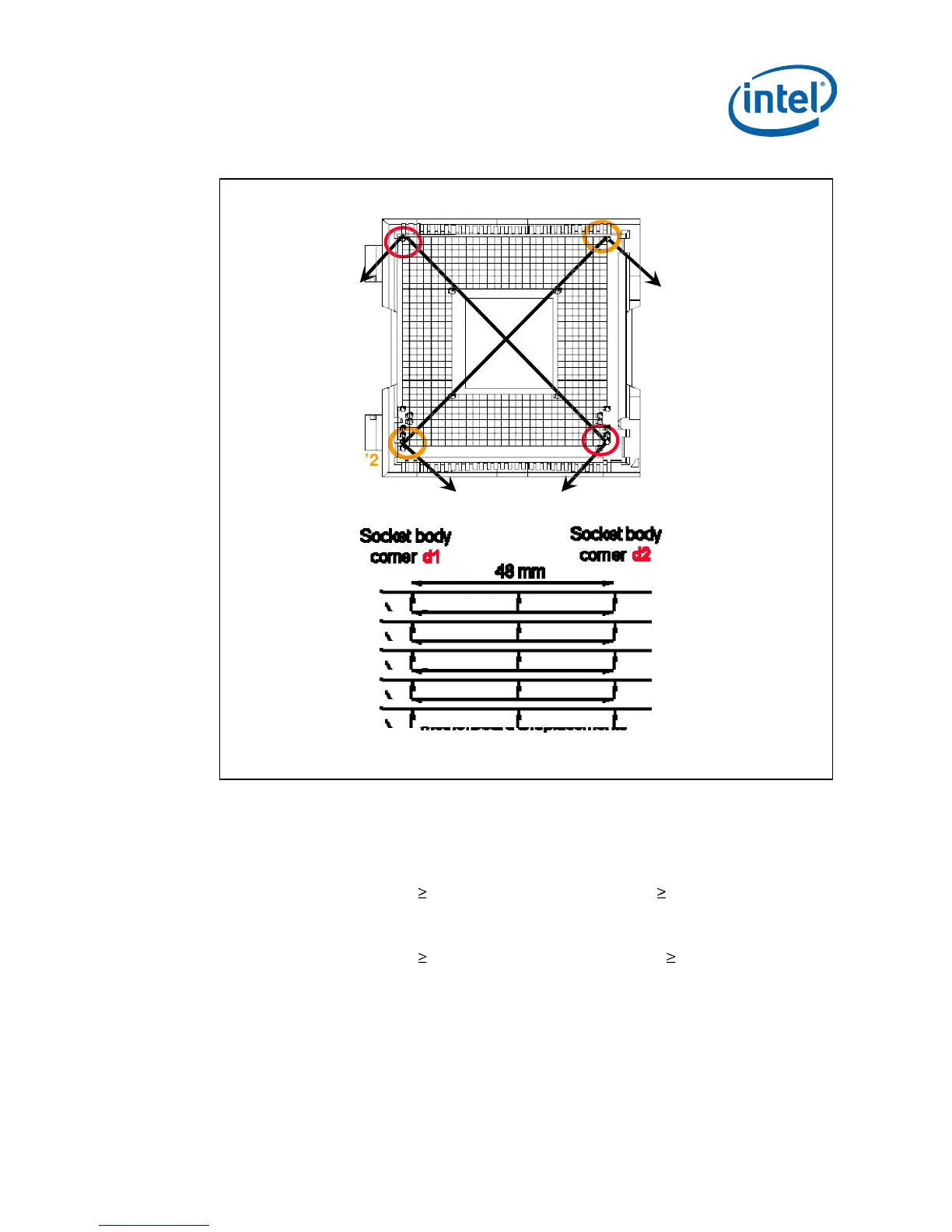

Figure 7-6. Board Deflection Definition

d’1

d’2

A.2.3 Board Deflection Limits

Deflection limits for the ATX/µATX form factor are:

d_BOL - d_ref 0.09 mm and d_EOL - d_ref 0.15 mm

And

d’_BOL – d’_ref 0.09 mm and d_EOL’ – d_ref’ 0.15 mm

NOTES:

1. The heatsink preload must remain within the static load limits defined in the processor

datasheet at all times.

2. Board deflection should not exceed motherboard manufacturer specifications.
