ATX Thermal/Mechanical Design Information

Thermal and Mechanical Design Guidelines 67

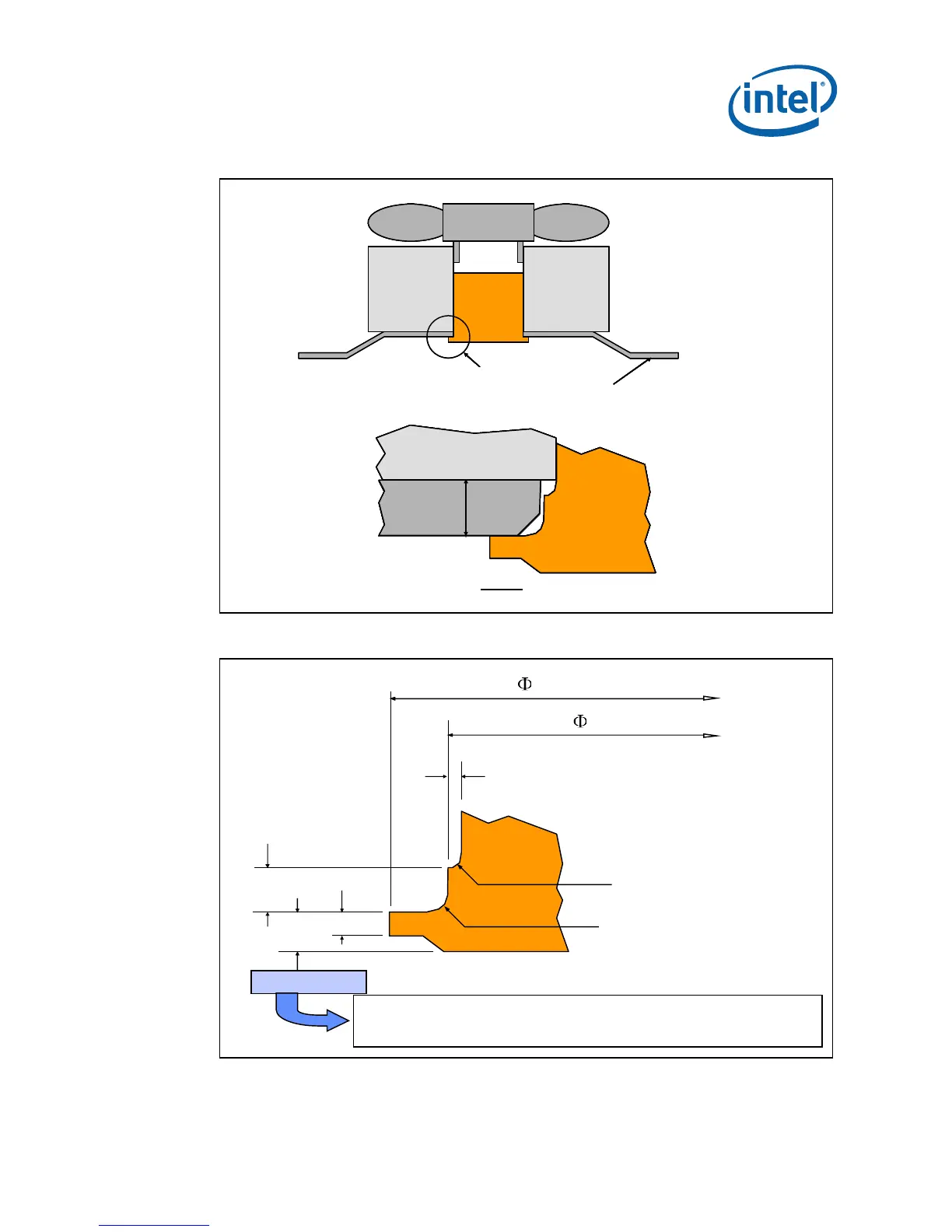

Figure 6-8. Critical Parameters for Interfacing to Reference Clip

Core

Fin Array

Fan

Clip

See Detail A

Core

Fin Array

Fan

Clip

See Detail A

Detail A

Fin Array

Clip

Core

1.6 mm

Detail A

Fin Array

Clip

Core

1.6 mm

Detail A

Fin Array

Clip

Core

1.6 mm

Detail A

Fin Array

Clip

Core

1.6 mm

Detail A

Fin Array

Clip

Core

1.6 mm

Detail A

Fin Array

Clip

Core

1.6 mm

Figure 6-9. Critical Core Dimension

R 0.40 mm max

36.14 +/- 0.10 mm

Gap required to avoid

core surface blemish

during clip assembly.

Recommend 0.3 mm min.

1.00 mm min

2.596 +/- 0.10 mm

38.68 +/- 0.30 mm

1.00 +/- 0.10 mm

Core

NOTE: Dimension from the bottom of the clip to the bottom of the

heatsink core (or base) should be met to enable the required

load from the heatsink clip (i.e., 43 lbf nominal +/- 10 lbf)
