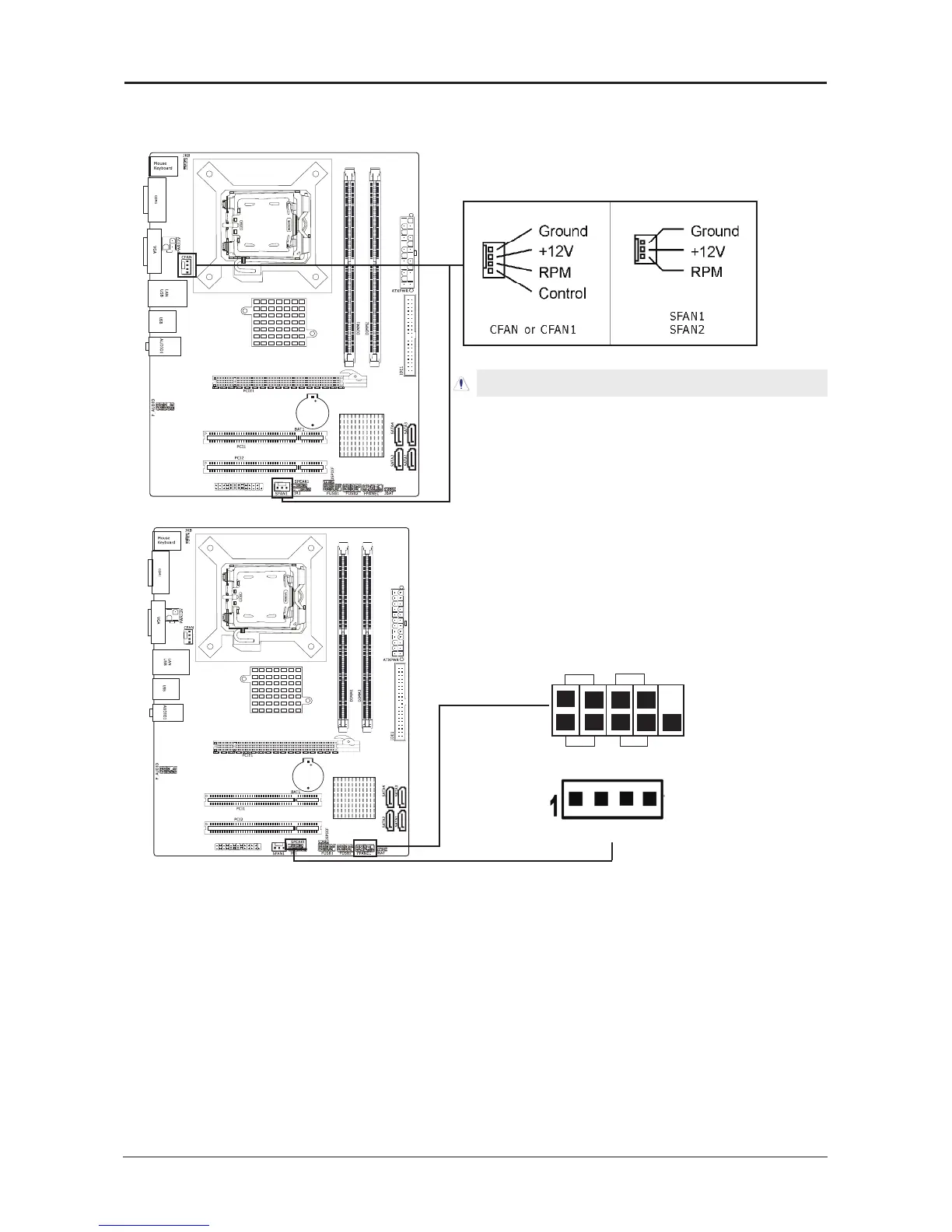

3.4 FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
CFAN: CPU Fan Power Connector
SFAN1: System Fan Power Connector
3.5 Front Panel Switches & Indicators Headers
SPEAKER
HD_LED (Red): Hard Driver LED connector
This connector connects to the case-mounted HD LED cable, and the LED will light when the
hard drive(s) is/are being accessed.
RST (Blue): Reset Switch
This connector connects to the case-mounted reset switch which allows you to reboot without
having to power-off the system and thus prolonging the life of the power supply or system.
PWR_ON (Black): Power Switch
Depending on the setting in the BIOS setup, this switch serves two functions which will allow
you to power-on/off the system or to enter the suspend mode.
PWR_LED (Green): Power/Standby LED
When the system's power is on, this LED will light. When the system is in the S1 (POS - Power
on Suspend) or S3 (STR - Suspend to RAM, optional) state, it will blink every second.
SPEAKER (Yellow or Black): Speaker Connector
This 4-pin connector connects to the case-mounted speaker.
These fan connectors are not jumpers. DO NOT place
jumper caps on these connectors.
+
-
+
-
PWR LED_
PWR ON_
HD LED_
RST
