Intel Desktop Board DN2800MT Product Guide

Desktop Board Components

Figure 1 shows the approximate location of the major components on the top side of

Intel Desktop Board DN2800MT.

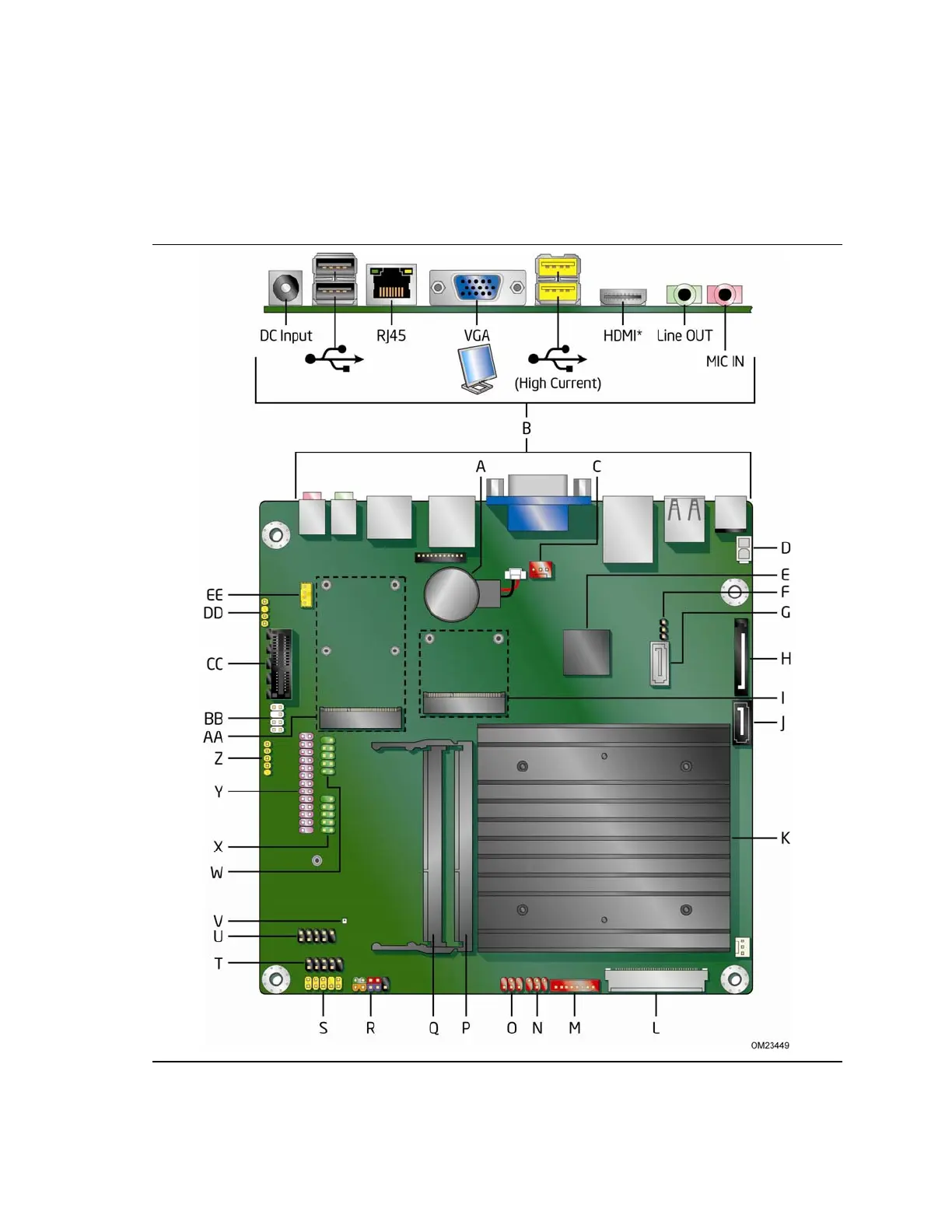

Figure 1. Intel Desktop Board DN2800MT Components (Top)
