Intel Desktop Board DN2800MT Technical Product Specification
36
1.12.3
Thermal Monitoring
Figure 9 shows the locations of the thermal sensor and fan header.
Item Description
A
System fan header
B
Thermal diode, located on the processor die

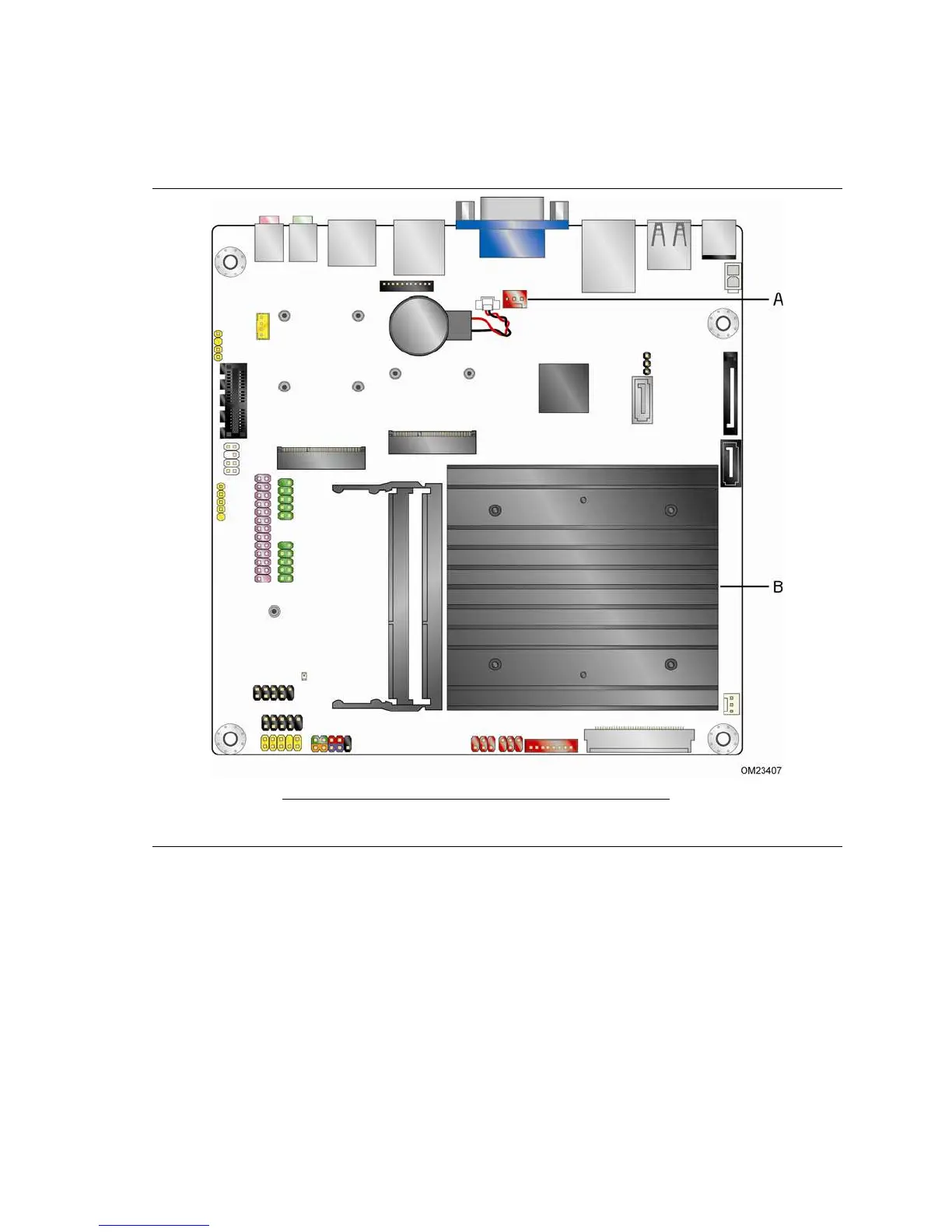

Figure 9. Thermal Sensor and Fan Header
36
38
Table of Contents
Revision History
3
Disclaimer
3
Board Identification Information
4
Specification Changes or Clarifications
4
Errata
4
Preface
6
Intended Audience
6
What this Document Contains
6
Typographical Conventions
6
Table of Contents
8
Tables
14
Product Description
14
Overview
14
Feature Summary
14
Board Layout (Top)
16
Figures
16
Major Board Components (Top)
16
Components Shown in Figure 1
17
Board Layout (Bottom)
18
Major Board Components (Bottom)
18
Components Shown in Figure 2
18
Block Diagram
19
Online Support
20
Processor
20
System Memory
21
SO-DIMM Configuration
22
Supported Memory Configurations
22
Graphics Subsystem
23
Integrated Graphics
23
Intel NM10 Express Chipset
23
HDMI Port Status Conditions
24
Flat Panel Display Interfaces
25
Flat Panel Connectors
25
Usb
28
SATA Interfaces
29
AHCI Mode
29
Legacy I/O Controller
30
Serial Ports
30
Parallel Port
30
Real-Time Clock Subsystem
30
1.10 Audio Subsystem
31
Audio Jack Support
31
Audio Subsystem Software
32
Audio Subsystem Components
32
Back Panel Audio Connectors
32
Internal Audio Headers
33
1.11 LAN Subsystem
34
Intel 82574L Gigabit Ethernet Controller
34
LAN Subsystem Software
35
RJ-45 LAN Connector with Integrated Leds
35
LAN Connector LED Locations
35
LAN Connector LED States
35
1.12 Hardware Management Subsystem
36
Hardware Monitoring
36
Fan Monitoring
36
Thermal Monitoring
37
Thermal Sensor and Fan Header
37
1.13 Power Management
38
Acpi
38
Effects of Pressing the Power Switch
38
Power States and Targeted System Power
39
Hardware Support
40
Wake-Up Devices and Events
40
Power Input
41
Fan Header
41
Location of the Standby Power LED
43
Technical Reference
44
Memory Resources
44
Addressable Memory
44
Detailed System Memory Address Map
45
Memory Map
46
Connectors and Headers
46
System Memory Map
46
Back Panel Connectors
47
Connectors and Headers (Top)
48
Connectors and Headers Shown in Figure 13
49
Connectors and Headers (Bottom)
50
Connectors and Headers Shown in Figure 14
50
Front Panel Audio Header for Intel HD Audio
51
Front Panel Audio Header for AC'97 Audio
51
Internal Stereo Speakers Header
52
Internal S/PDIF Header
52
Internal DMIC Header
52
Front Panel USB Dual-Port Header
52
Solid-State Drive or Compatible Device)
52
Serial Port Headers
53
Parallel Port Header
53
SATA Connectors
54
SATA Power Connector
54
Custom Solutions Header
54
System Fan Header
55
Flat Panel Voltage Selection Header
55
Backlight Inverter Voltage Selection Header
55
Pin LVDS Connector
56
Pin Edp Connector
57
Pin FPD Brightness Connector
57
PCI Express Full-/Half-Mini Card Connector
58
Internal Power Supply Connector Pinout
59
Connection Diagram for Front Panel Header
60
Front Panel Header
60
States for a One-Color Power LED
61
Connection Diagram for Front Panel USB Dual-Port Header
62
Connection Diagram for Front Panel USB Dual-Port Header (with Intel Z-U130 USB Solid-State Drive, or Compatible Device, Support)
62
Debug Header
63
I/O Shields
64
Half-Height Back Panel I/O Shield
64
Jumper Block
65
Standard-Height Back Panel I/O Shield
65

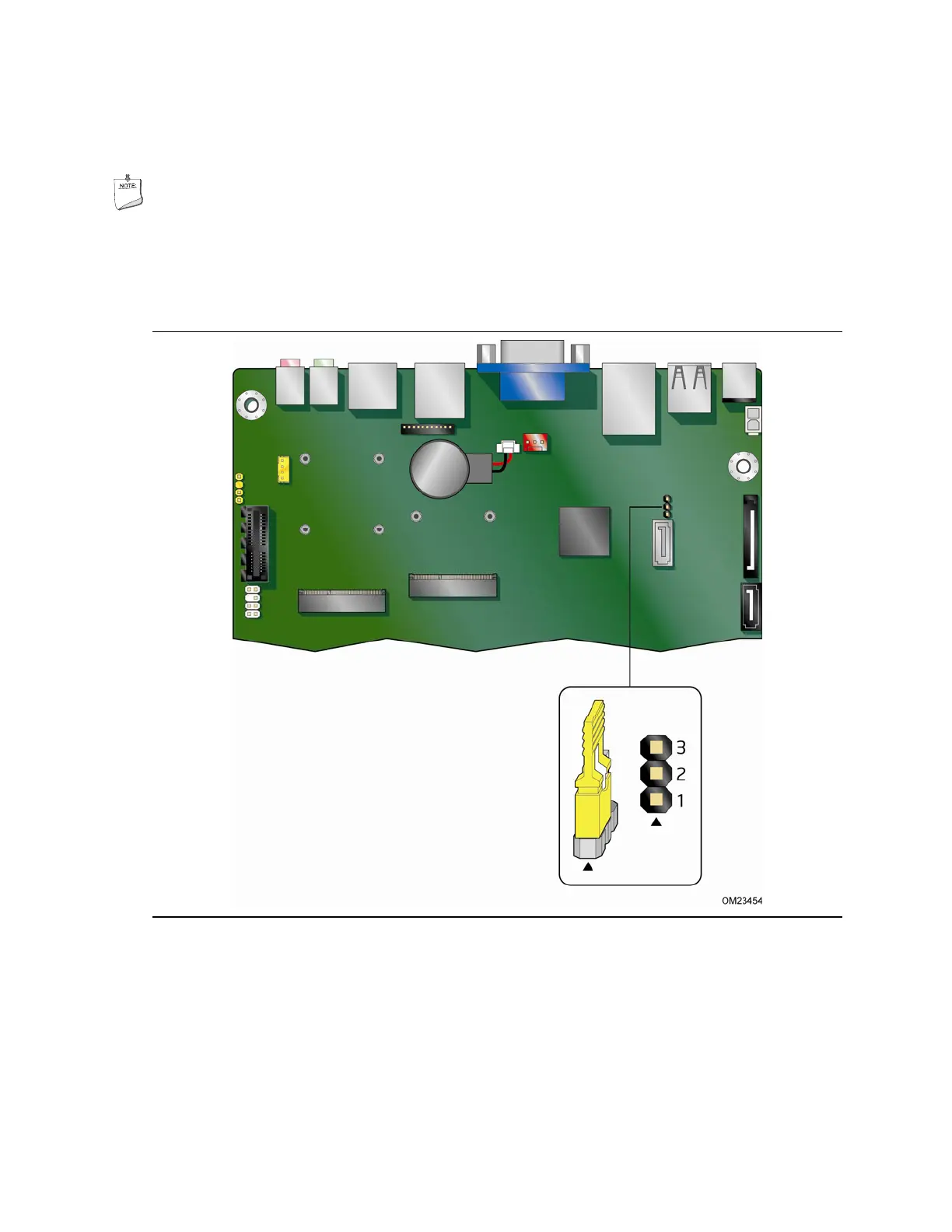

Location of the Jumper Block
66
BIOS Setup Configuration Jumper Settings
66
Mechanical Considerations
67
Form Factor
67
Board Dimensions
68
Board 3D View
69
D View of Intel Desktop Board DN2800MT
69
Electrical Considerations
70
Power Supply Considerations
70
Typical System-Level Power Consumption Figures
71
Fan Header Current Capability
72
PCI Express* Add-In Card Considerations
72
Thermal Considerations
72
Localized High Temperature Zones
73
Chassis Design Guideline
74
Thermal Considerations for Various Components and Subsystems
74
Reliability
75
Fan Location Guide for Chassis Selection (Chassis Orientation Is Not Restricted)
75
Environmental
76
Environmental Specifications
76
Overview of BIOS Features
78
Introduction
78
BIOS Flash Memory Organization
79
BIOS Setup Program Menu Bar
79
BIOS Setup Program Function Keys
79
System Management BIOS (SMBIOS)
80
Legacy USB Support
80
BIOS Updates
81
Language Support
81
Custom Splash Screen
82
BIOS Recovery
82
Accepdrives/Media Types for BIOS Recovery
82
Boot Options
83
Optical Drive Boot
83
Network Boot
83
Booting Without Attached Devices
83
Changing the Default Boot Device During POST
83
Boot Device Menu Options
83
Adjusting Boot Speed
84
Peripheral Selection and Configuration
84
Hard Disk Drive Password Security Feature
85
Master Key and User Hard Drive Password Functions
85
3.10 BIOS Security Features
86
Supervisor and User Password Functions
86
Error Messages and Beep Codes
88
Speaker
88
BIOS Beep Codes
88
Front-Panel Power LED Blink Codes
89
BIOS Error Messages
89
Port 80H POST Codes
90
Port 80H POST Code Ranges
90
Port 80H POST Codes
91
Typical Port 80H POST Sequence
94
Regulatory Compliance and Battery Disposal Information
96
Regulatory Compliance
96
Safety Standards
96
European Union Declaration of Conformity Statement
97
Product Ecology Statements
98
EMC Regulations
100
ENERGY STAR* 5.0, E-Standby, and Erp Compliance
103
Regulatory Compliance Marks (Board Level)
104
Regulatory Compliance Marks
104
Battery Disposal Information
105
