Installing and Replacing Desktop Board Components
29
Connecting to the Internal Headers and
Connectors
Before connecting cables to any of the internal headers and connectors, observe the
precautions in “Before You Begin” on page 15. Figure 11 shows the location of the
internal headers and
connectors on Intel Desktop Board DN2800MT.

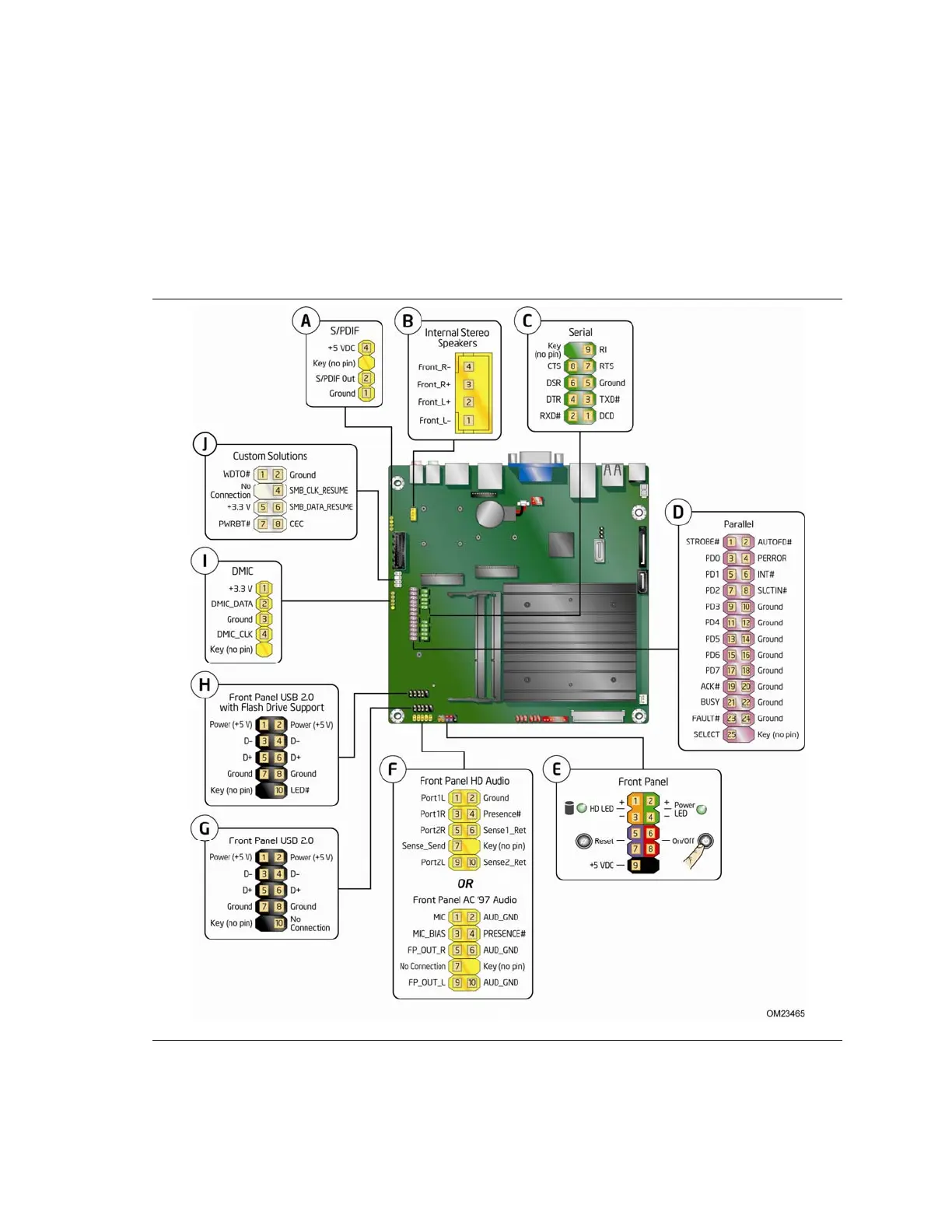

Figure 11. Internal Headers and Connectors
