Technical Reference
47
2.2.2 Connectors and Headers (Top)
Figure 13 shows the locations of the connectors and headers on the top-side of the
board.

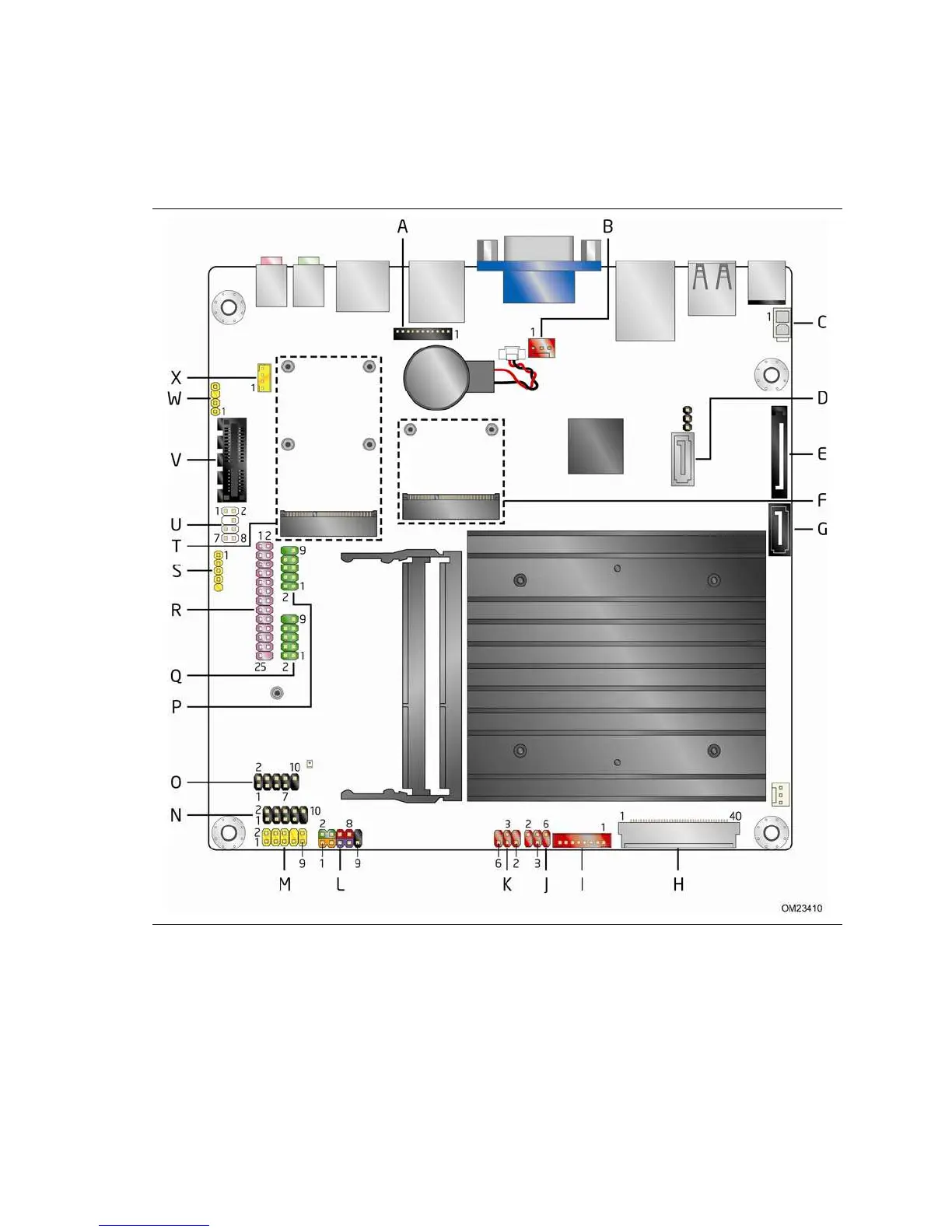

Figure 13. Connectors and Headers (Top)
