Intel Galileo User Manual

Intel
®
Galileo
March 2014 Board User Guide
Order Number: 330237-001US 5
Overview—Intel
®
Galileo Board
1.0 Overview
The Intel
®
Galileo Board provides a programmable control PCB for the maker
community, students, and professional developers. It is based on the Intel
®
Quark SoC
X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip.
The Intel
®
Galileo Board is the first board based on Intel
®
architecture designed to be
hardware and software pin-compatible with Arduino shields designed for the Uno R3. It
is also software-compatible with the Arduino* Software Development Environment,
making usability and development a snap.
In addition to Arduino hardware and software compatibility, the Intel
®
Galileo Board
has several industry-standard I/O ports and features to expand native usage and
capabilities beyond the Arduino shield ecosystem, which are described in the next
section of this document.
1.1 Key Components
Figure 2 and Table 1 describe key components of the Intel
®
Galileo Board.

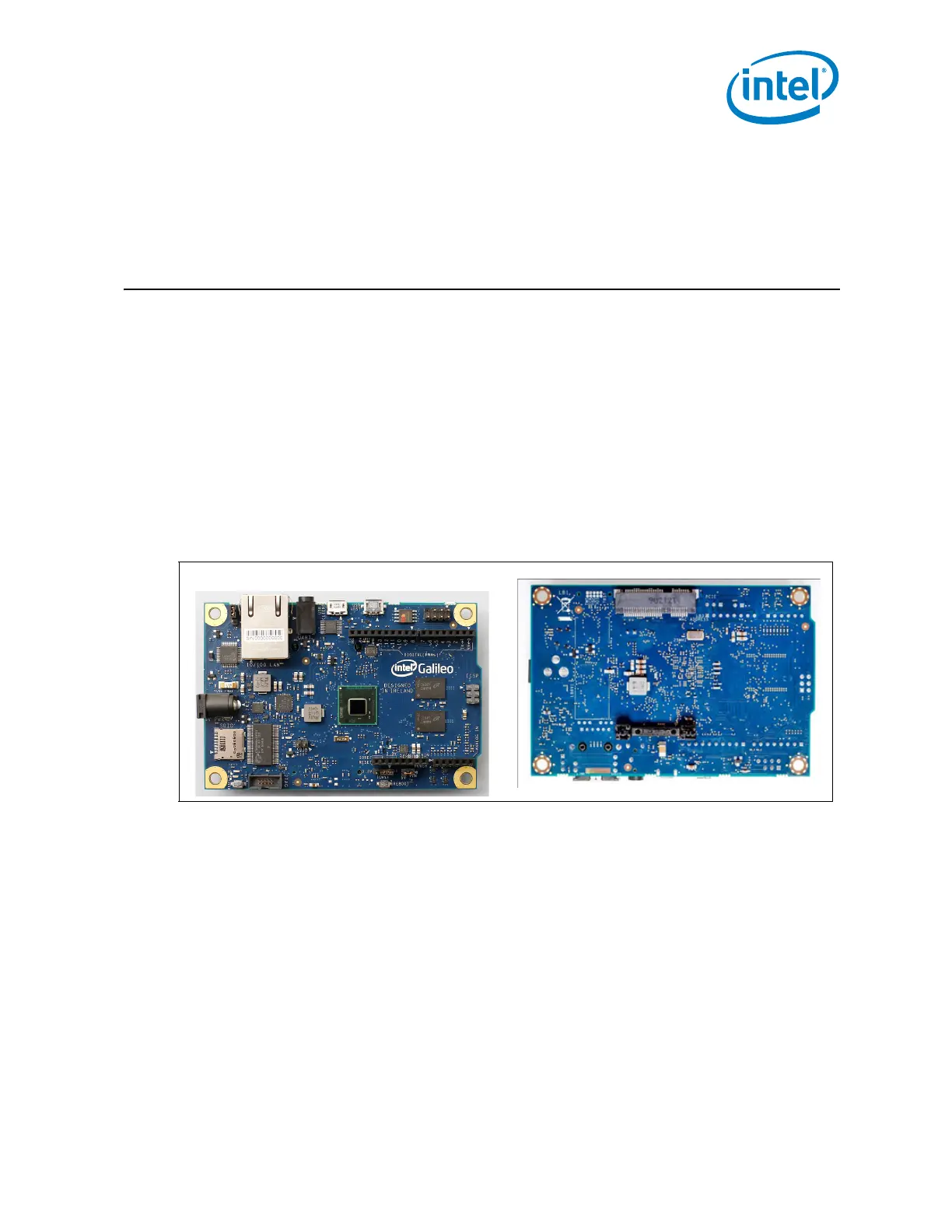

Figure 1. Galileo - Front and Back Views

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
