Intel Itanium 2 Processor - Itanium 2 Processor Package

70 Datasheet
Mechanical Specifications
NOTE:

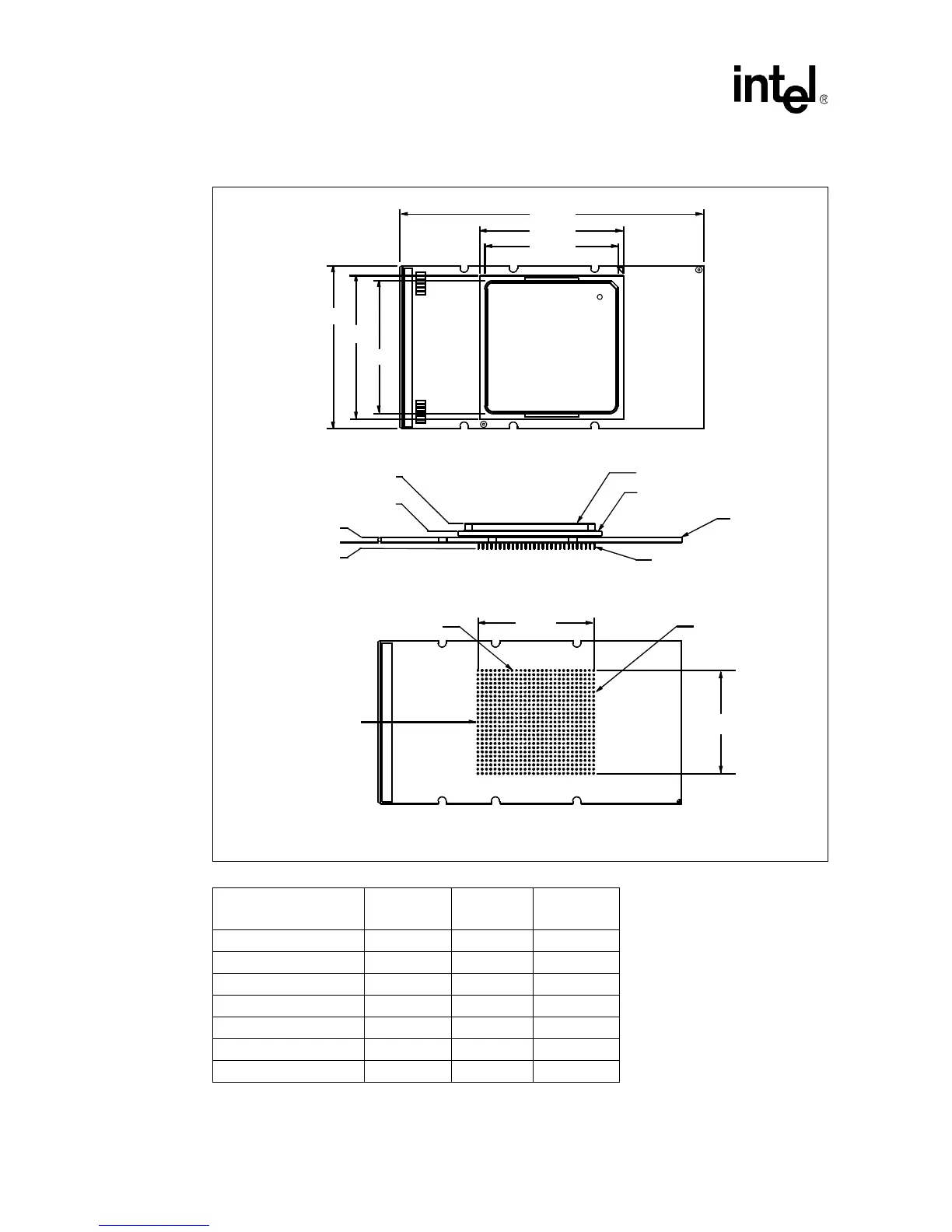

Figure 4-2. Itanium
®
2 Processor Package
All dimensions are measured in mm. Not to scale.
000655g
90.00
42.50
38.50
48.26
42.50
38.50
Top View
25 x 1.27 Pitch
Bottom View
28 x 1.27 Pitch
34.29
30.48611 x 0.305 Pins
Side View
Integrated Heat Spreader
Processor Package Substrate
Interposer
Pins
1.43
0.00
2.03
IHS Height (See Note)
Substrate Height (See Note)
Ø
Processor
IHS
Height
Substrate
Height
Units
900 MHz (1.5 MB) 5.575 3.397 mm
1.0 GHz (3 MB) 5.575 3.397 mm
1.3 GHz (3 MB) 5.825 3.447 mm
1.4 GHz (4 MB) 5.825 3.447 mm
1.5 GHz (4 MB/6 MB) 5.825 3.447 mm
1.6 GHz (6 MB/9 MB) 5.825 3.447 mm
1.66 GHz (6 MB/9 MB) 5.825 3.447 mm
