72 Datasheet
Mechanical Specifications
4.2 Package Marking
The following section details the processor top-side and bottom-side markings for the Itanium 2
processor and is provided as an identification aid. The processor top-side mark for the product is a
laser marking on the IHS.
4.2.1 Processor Top-Side Marking
Figure 4-4 shows an example of the laser marking on the IHS. The processor top-side mark
provides the following information:
• INTEL CONFIDENTIAL
• Legal Mark
• Assembly Process Order (APO) number
• Serial Number
4.2.2 Processor Bottom-Side Marking
The processor bottom-side mark for the product is a laser marking on the pin side of the interposer.
Figure 4-5 shows the placement of the laser marking on the pin side of interposer. The processor
bottom-side mark provides the following information:
• Product ID
• Finish Process Order (FPO)
• Serial Number
• S-Spec
• Country of origin
• 2D Matrix Mark (on Itanium 2 processor [1.30 GHz, 1.40 GHz, 1.50 GHz, 1.60 GHz],
Itanium 2 (9 MB) class of processors and Montecito class of processors only. Not included on
the Itanium 2 [900 MHz, 1.0 GHz] processor).

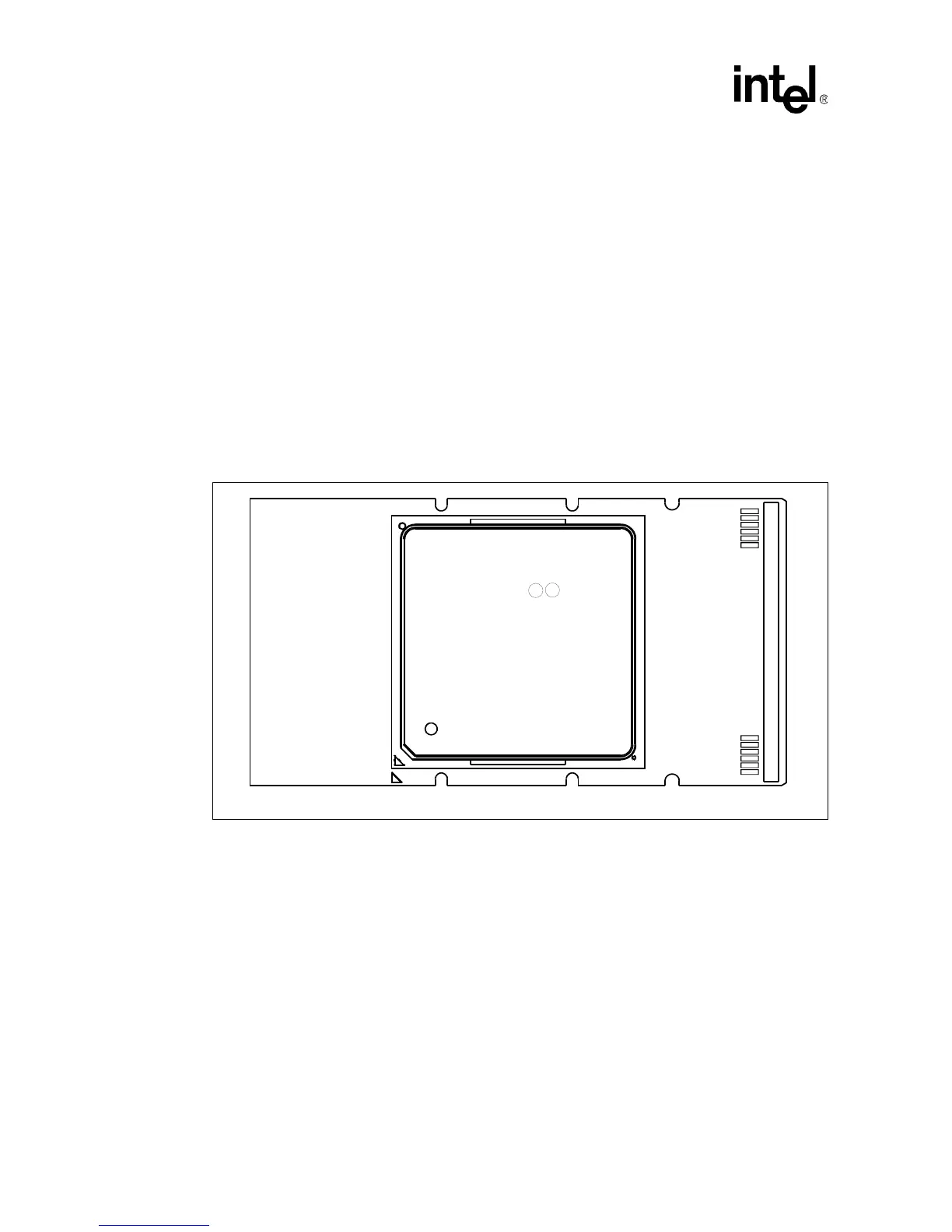

Figure 4-4. Processor Top-Side Marking on IHS
001088b
INTEL CONFIDENTIAL
APO NUMBER
SERIAL NUMBER
i M C 'YY
