2.8 Recommended Connections for Unused Pins
Pins that are unused in an application environment (as opposed to testing environment) should be
connected to the states listed in Table 2-26. Pins that must be used in an application are stated as
such and do not have a recommended state for unused connection.

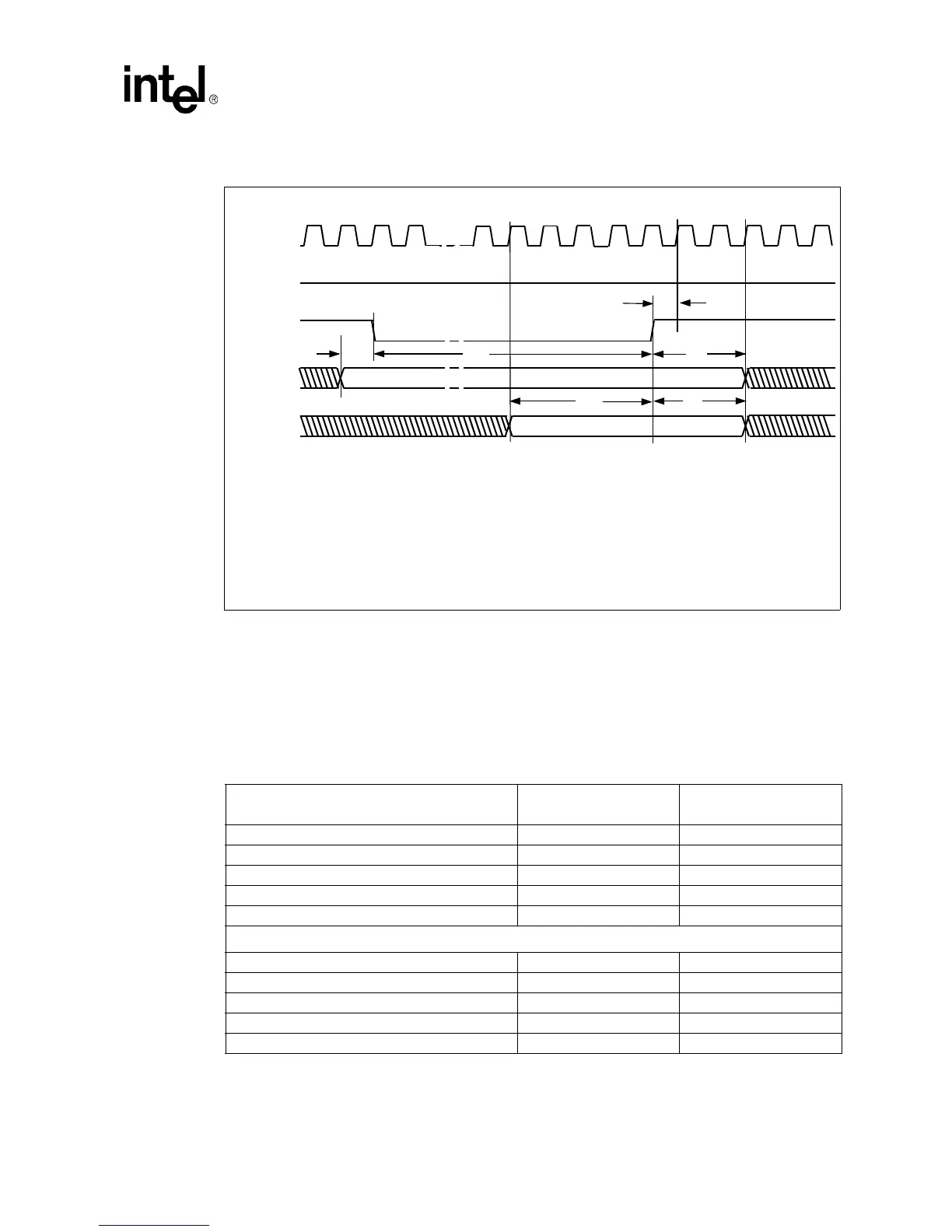

Figure 2-7. System Bus Reset and Configuration Timings for Warm Reset
000777b
BCLK
PWRGOOD
RESET#
Bus Ratio
(A[21:17]#)
T
A
= 1.15 ns minimum; (set up time to BCLK for deassertion edge of RESET#)
T
B
= 1 ms minimum for warm reset
T
D
= 2 BCLKs minimum, 3 BCLKs maximum
T
E
= 4 BCLKs minimum
T
F
= 2 BCLKs minimum, 3 BCLKs maximum
Additional
Configuration
Signals
T
B
T
D
T
E
T
F
T
A
t
1
t
2
t
3
T
C
T
C
= Bus ratio signals must be asserted no later than RESET#
t
-2
t
-1
t
0
t
-4
t
-3
Table 2-26. Connection for Unused Pins (Sheet 1 of 2)
Pins/Pin Groups
Recommended
Connections
Notes
AGTL+ pins H
1, 2
HSTL Clock Signals Must be used
All Power Signals Must be used
PWRGOOD Must be used
TUNER[2:1] Must be used
TAP Signals
TCK L
1, 3
TRST# L
1, 3
TDI H
1, 3
TDO H
1, 3
TMS H
1, 3
