Intel LV19C Series - External Location - Left & Right Side Views

Introduction
1 - 6 External Location - Left & Right Side Views
1.Introduction
External Location - Left & Right Side Views

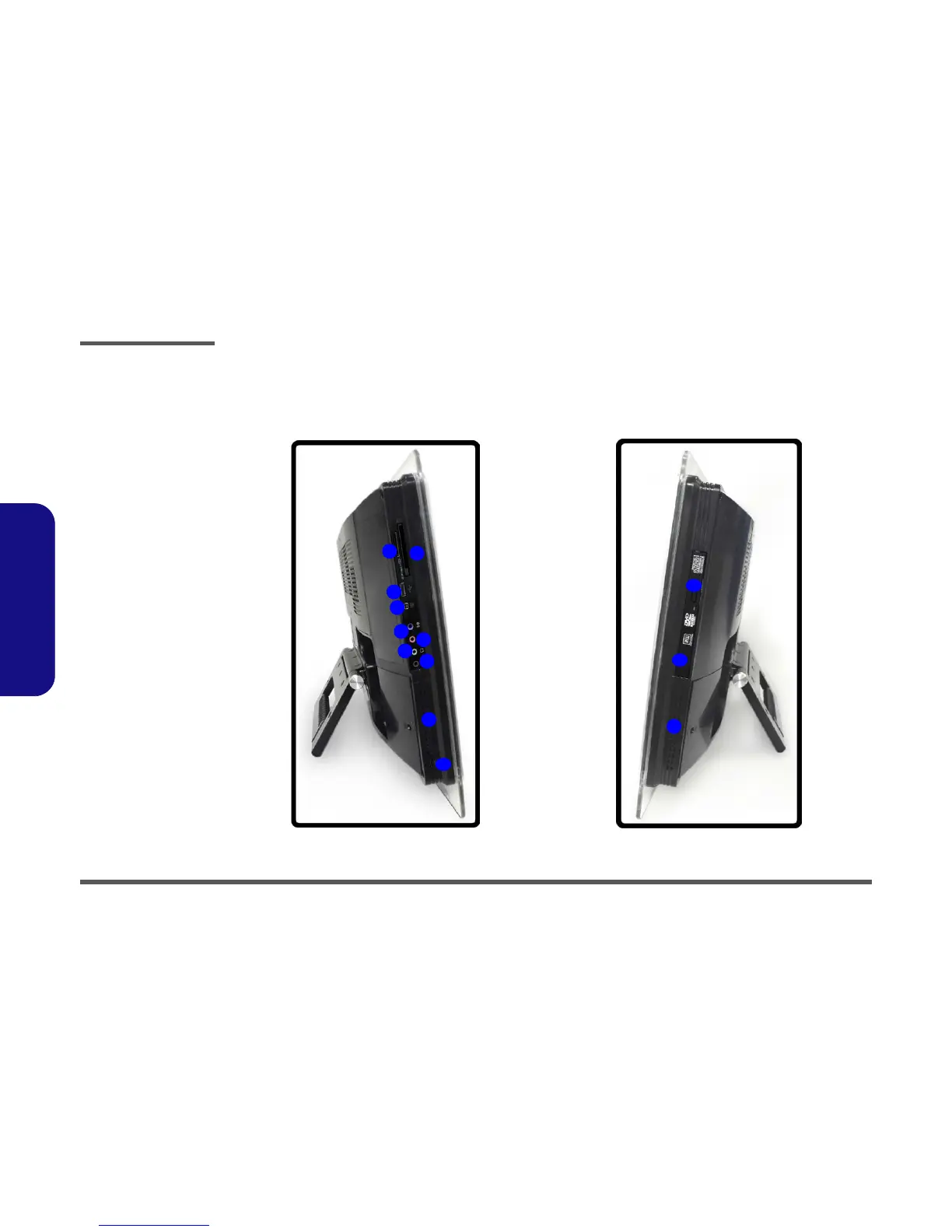

Figure 1 - 2
Left & Right Views
1. ExpressCard
Slot 54/34
2. 7-in-1 Card
Reader
3. 1 * USB 2.0 Port
4. Mini-IEEE 1394
Port
5. Line-In Jack
(Blue)
6. Microphone-In
Jack (Pink)
7. Headphone-Out
Jack (Green)
8. S/PDIF-Out Jack
(Black)
9. Vent/Fan Intake/
Outlet
10. Security Lock
Slot
11. Optical (CD/
DVD) Device
12. CD Emergency
Eject
Left Right
1
2
5
6
7
9
8
10
3
4
11
12
9
