Intel LV19C Series - Removing the TV Tuner Module

Disassembly
Removing the TV Tuner Module 2 - 13
2.Disassembly
Removing the TV Tuner Module
1. Remove the USB port & module covers (page 2 - 11).
2. Carefully disconnect cable , then gently push the latches and toward the sides of the socket to release the
module.
3. The TV Tuner module will pop-up.
4. Lift the TV Tuner module up and off the computer.

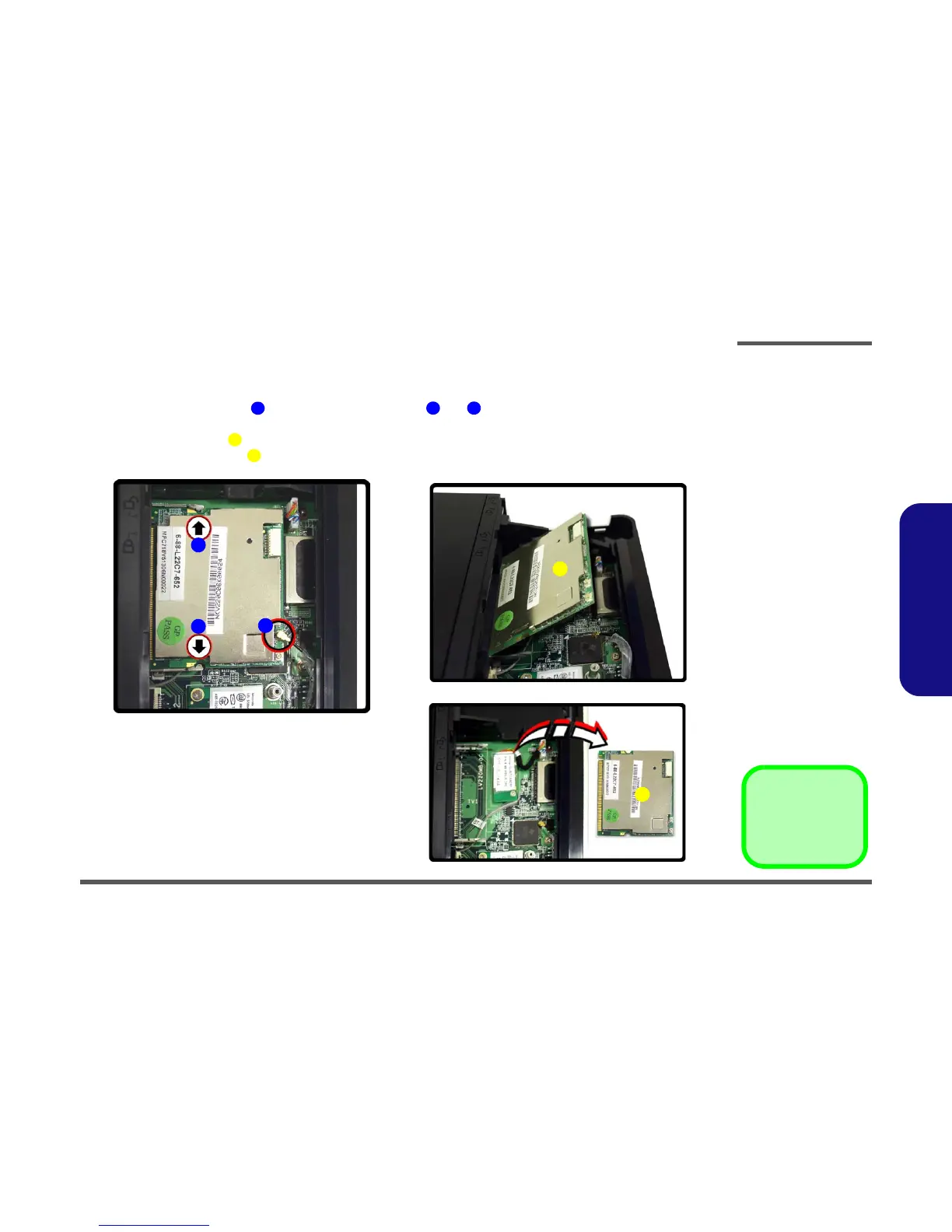

Figure 2 - 8
TV Tuner Module
Removal
Sequence
a. Pull the latch(es) on
the module socket to
release the module.
b. The module will pop-
up.
c. Lift the module off the
mainboard.
1
2 3
4
4

4. TV Tuner Module
a.
1
2
3
b.
c.
4
4
