Intel LV19C Series - Mainboard Overview - Top (Key Parts)

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

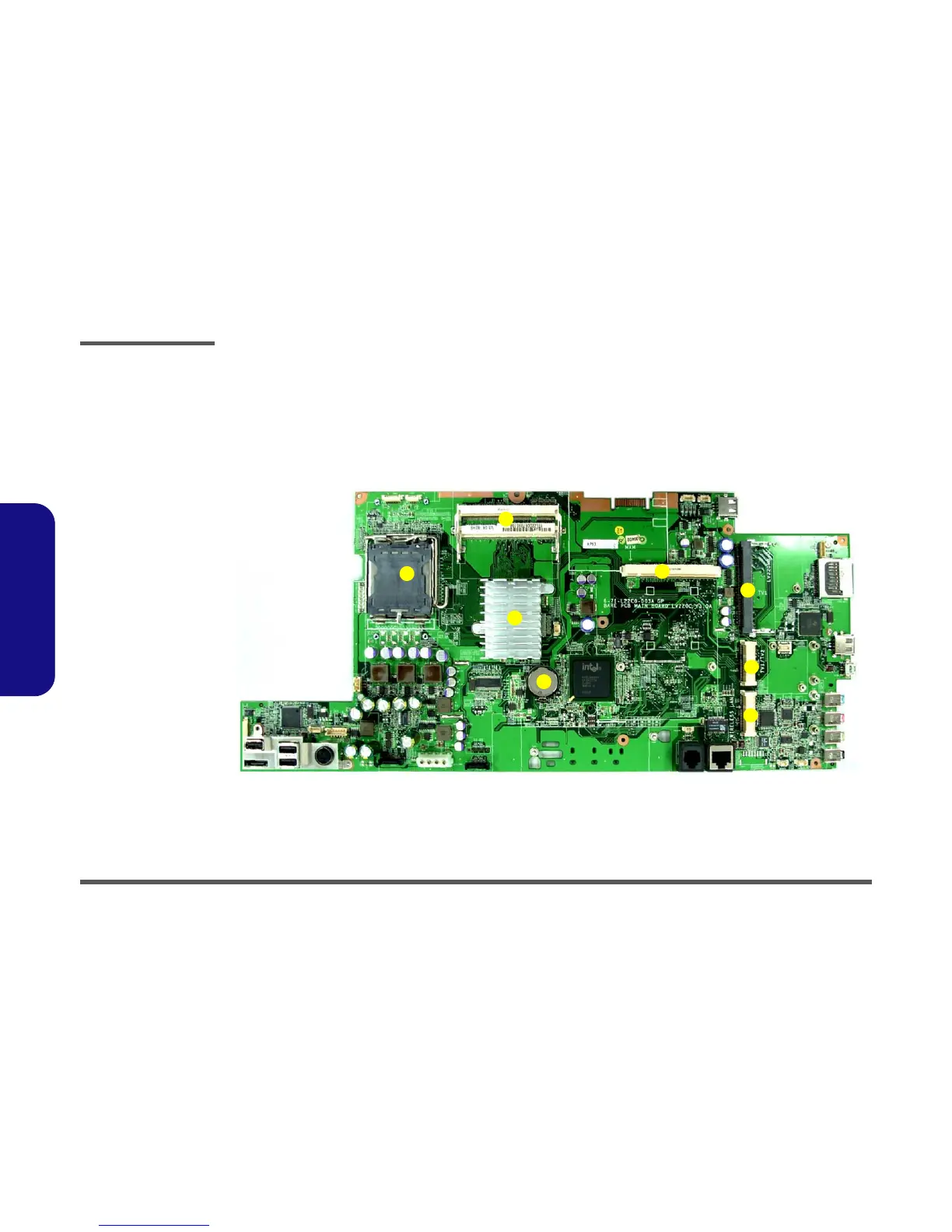

Mainboard Overview - Top (Key Parts)
Figure 1 - 4
Mainboard Over-
view - Top
Key Parts
1. CPU Socket (no
CPU Installed)
2. RAM Sockets
3. Intel 965 (North
Bridge)
4. CMOS Battery
5. Video Card
Socket
6. Mini PCI Socket
for TV
7. Mini PCI Ext.
Socket for
WLAN and TV
5
6
7
4
1
3
2
7
