Intel LV19C Series - Removing the Bluetooth Module

Disassembly
2 - 14 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Remove the USB port & module covers (page 2 - 11) and TV Tuner module (page 2 - 13).
2. Remove screw and then carefully disconnect the connector & cable from the module socket.
3. Lift the Bluetooth module up and off the computer.

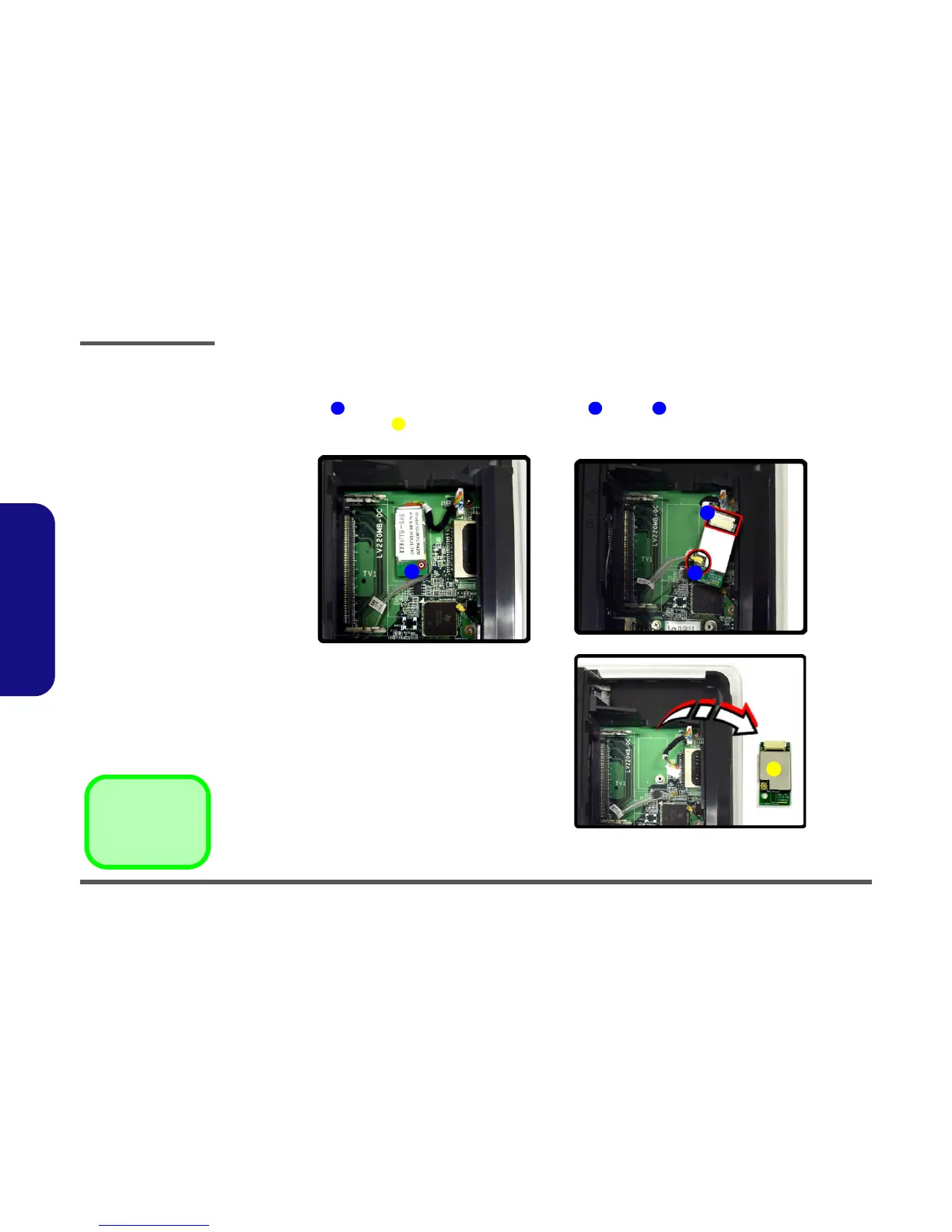

Figure 2 - 9
Bluetooth Module
Removal
Sequence
a. Remove the screw.
b. Disconnect the cable.
c. Lift the Bluetooth
module off the
mainboard.
1 2 3
4
1
a.
2
3
4
b.
c.

4. Bluetooth Module
•1 Screw
