Disassembly
2 - 6 Removing the Hard Disk Drive Assembly
2.Disassembly
7. Carefully disconnect the cable(s) from the hard disk(s) you want to replace.
8. Remove screws - , and brackets from the hard disk .
9. Reverse the removal procedure to install any new hard disk.
9
10 13 14
15
9
10
11
12
13
14
14
d. e.
15

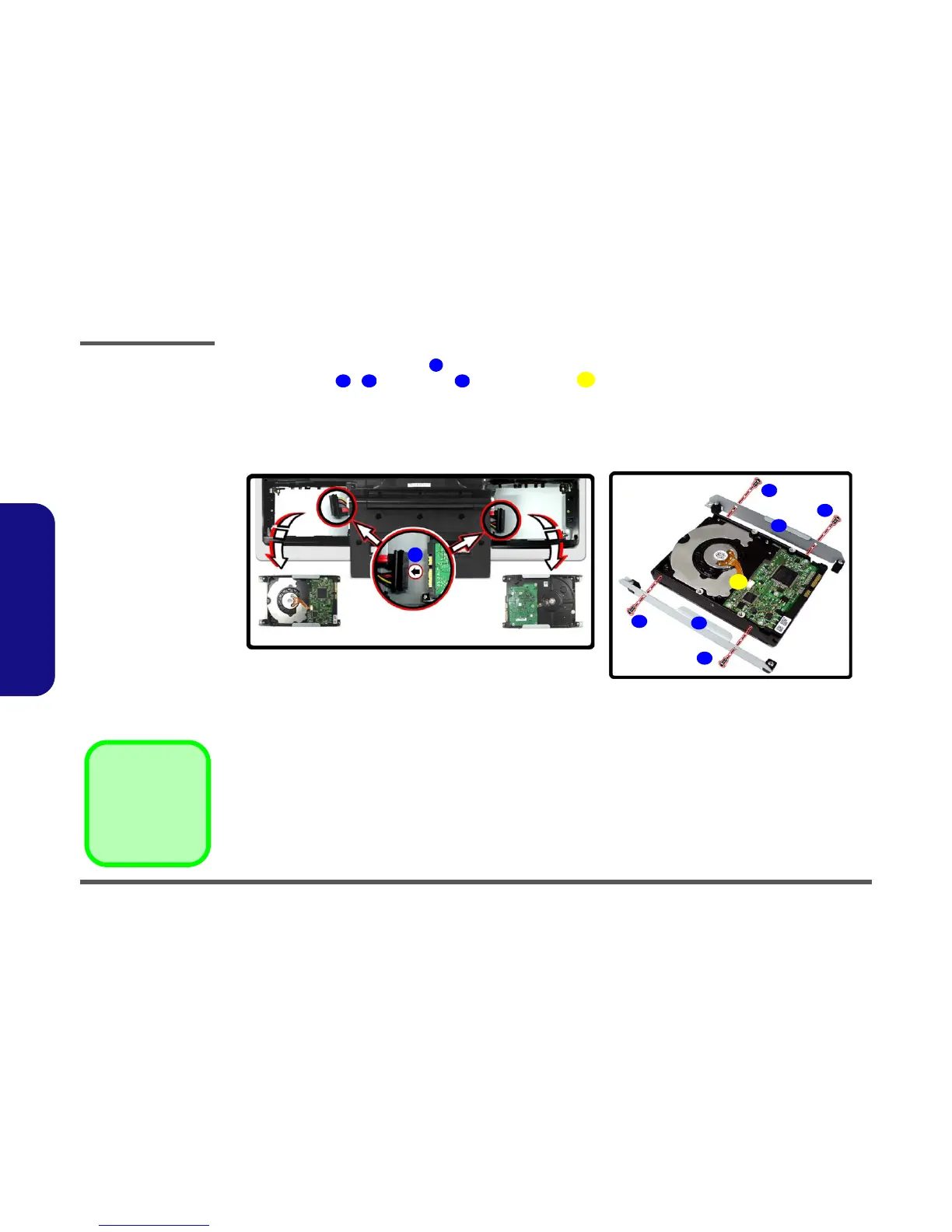

Figure 2 - 1
Hard Disk Removal
Sequence
d. Disconnect the cables
from the HDD.
e. Remove the screws
and separate the HDD
from the bracket.

14. HDD Bracket
15. HDD
•4 Screws
