Disassembly
2 - 16 Removing the LCD Back Cover
2.Disassembly
5. Remove screws - from the LCD back cover and slide it up towards the top of the computer.
6. Carefully remove the LCD back cover from the main unit and set it aside.
8 15
16

16. LCD back cover
•8 Screws
d.
9
10
14
e.
16
8
15
13
11 12

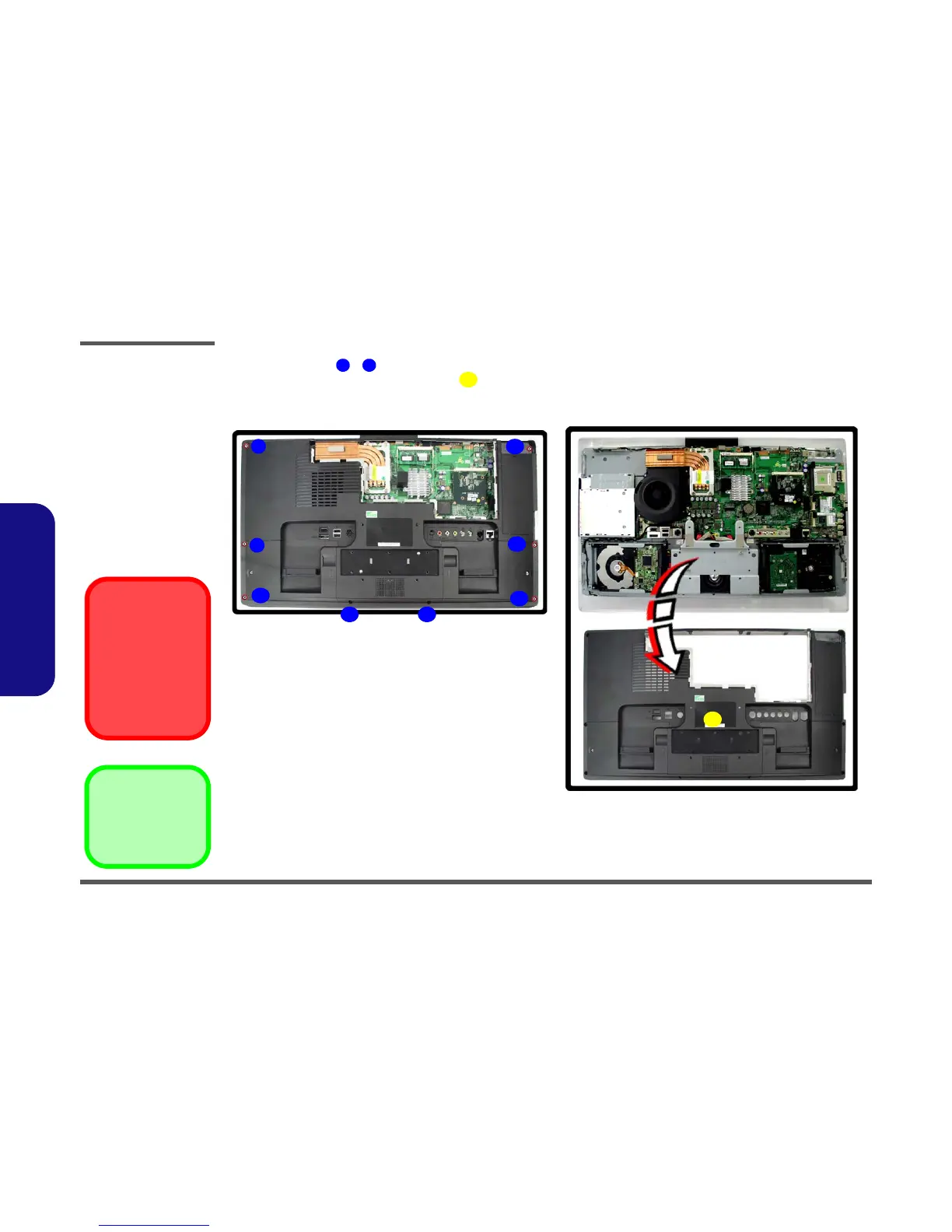

Figure 2 - 11
LCD Back Cover
Removal
Sequence (cont’d)
d. Remove the screws
from the LCD back
cover.
e. Lift the cover out and
set it aside.

Card Reader/PC Card
Slots
Make sure you remove
any cards or covers in
the 7-in-1 Card Reader
and PC Card slot be-
fore removing the rear
case cover.
