2-3-3 LGA 1156 CPU Installation Guide

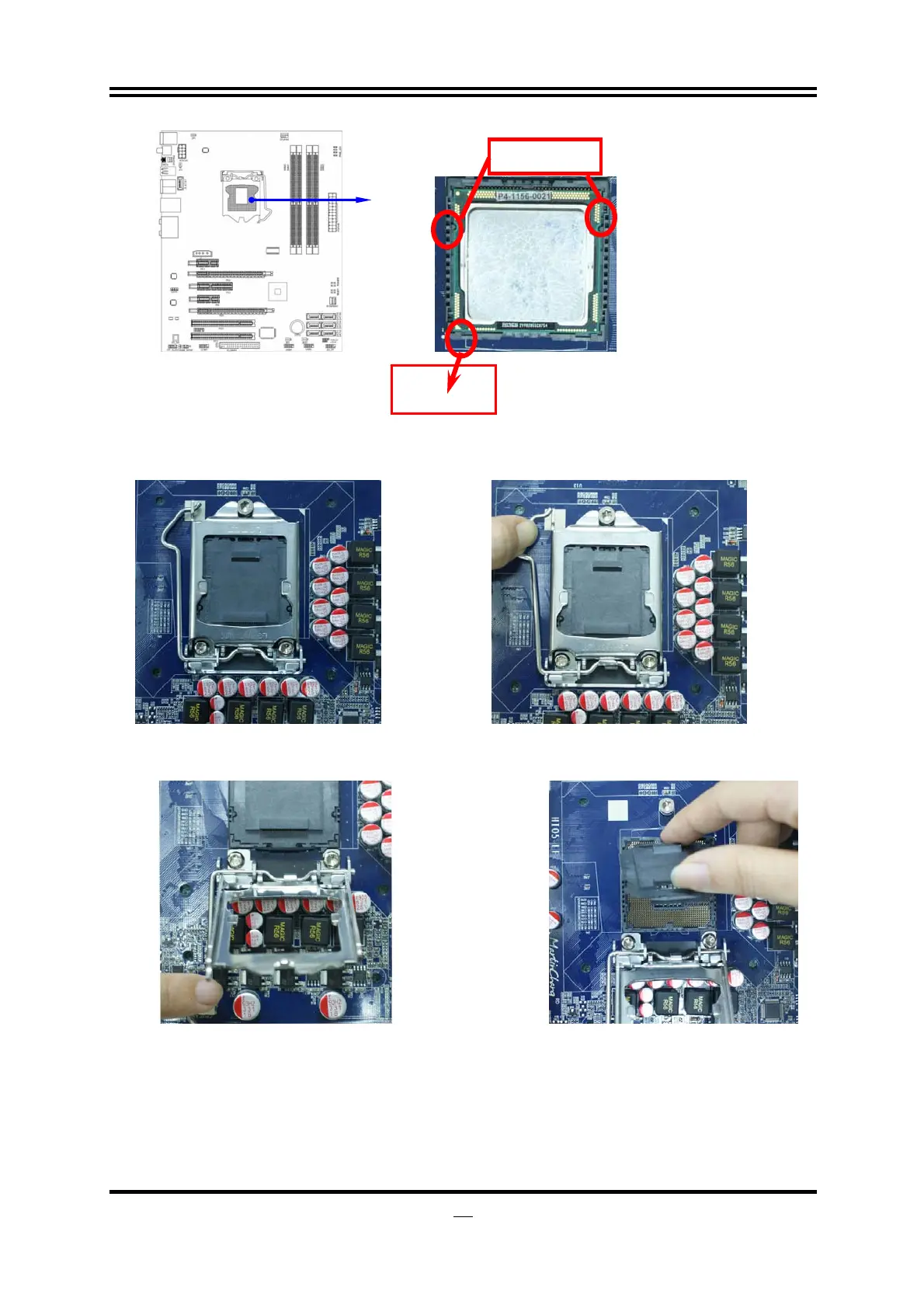

1. Please make sure that CPU socket is facing towards
you and the level is on you left hand side.
2.
Press down the level and move it to the left side to
make sure it is freed from the hook and then open it
upwards about 135 degree.
3. Open the level upwards about 135 degree and the metal
protection plate will be pulled up at the same time
.
4. Remove the plastic protective cap from the socket.
(Put it to the original place if CPU is not installed. Do
not touch the metal contact point of the CPU socket).
Alignment key
Pin-1
Indicator
