30

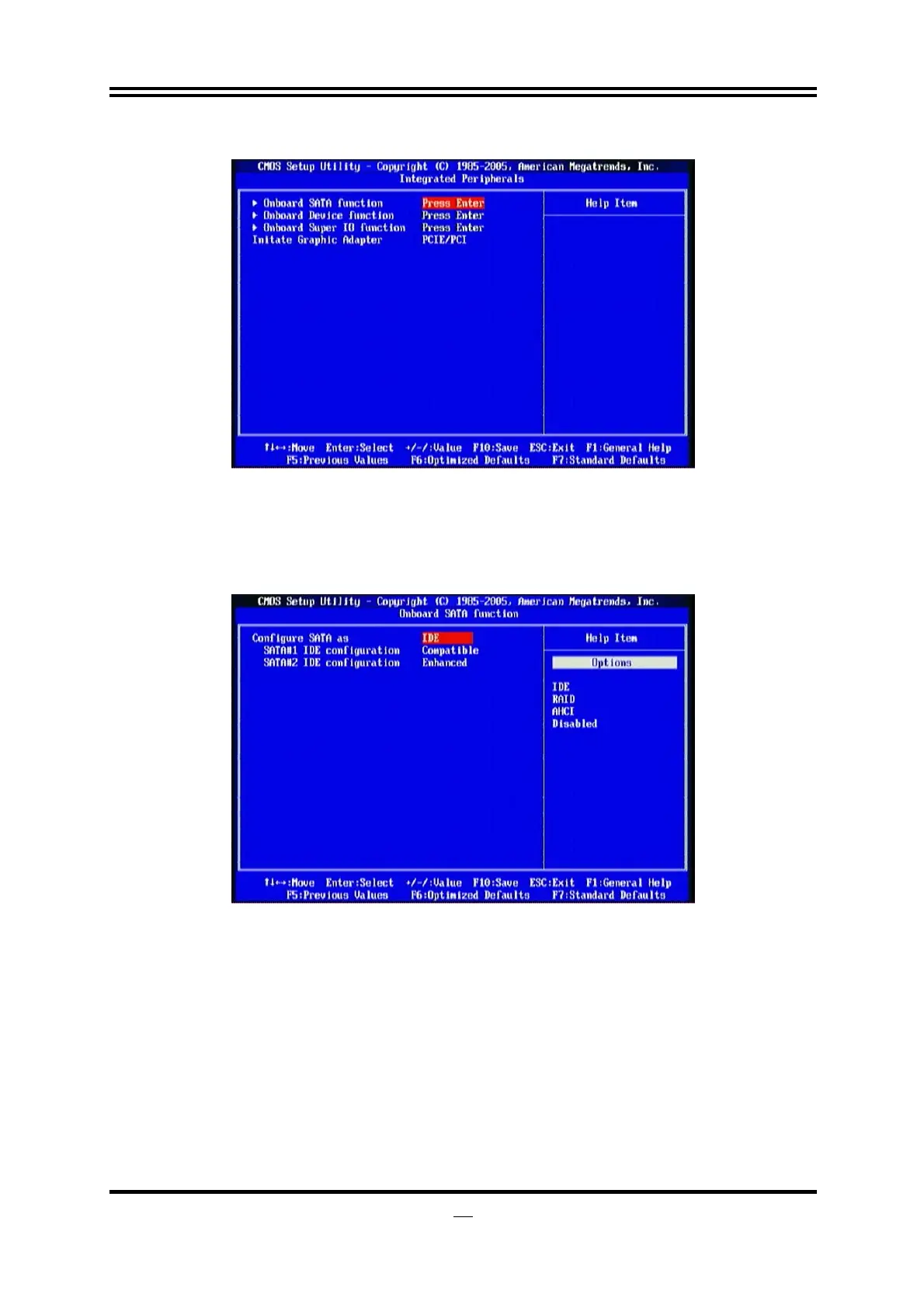

3-7 Integrated Peripherals
Initate Graphics Adapter
Select which graphics controller to use as the primary boot device. The optional
settings are: PCI/PCIE; PCIE/PCI.
3-7-1 Onboard SATA Function
Configure SATA#1 as
Press Enter to select the SATA type. The optional settings are: IDE; RAID; AHCI and
Disabled.
SATA#1 IDE Configuration
The optional settings are: Compatible and Enhanced.
SATA#2 IDE Configuration
The optional settings are: Disabled and Enhanced.
