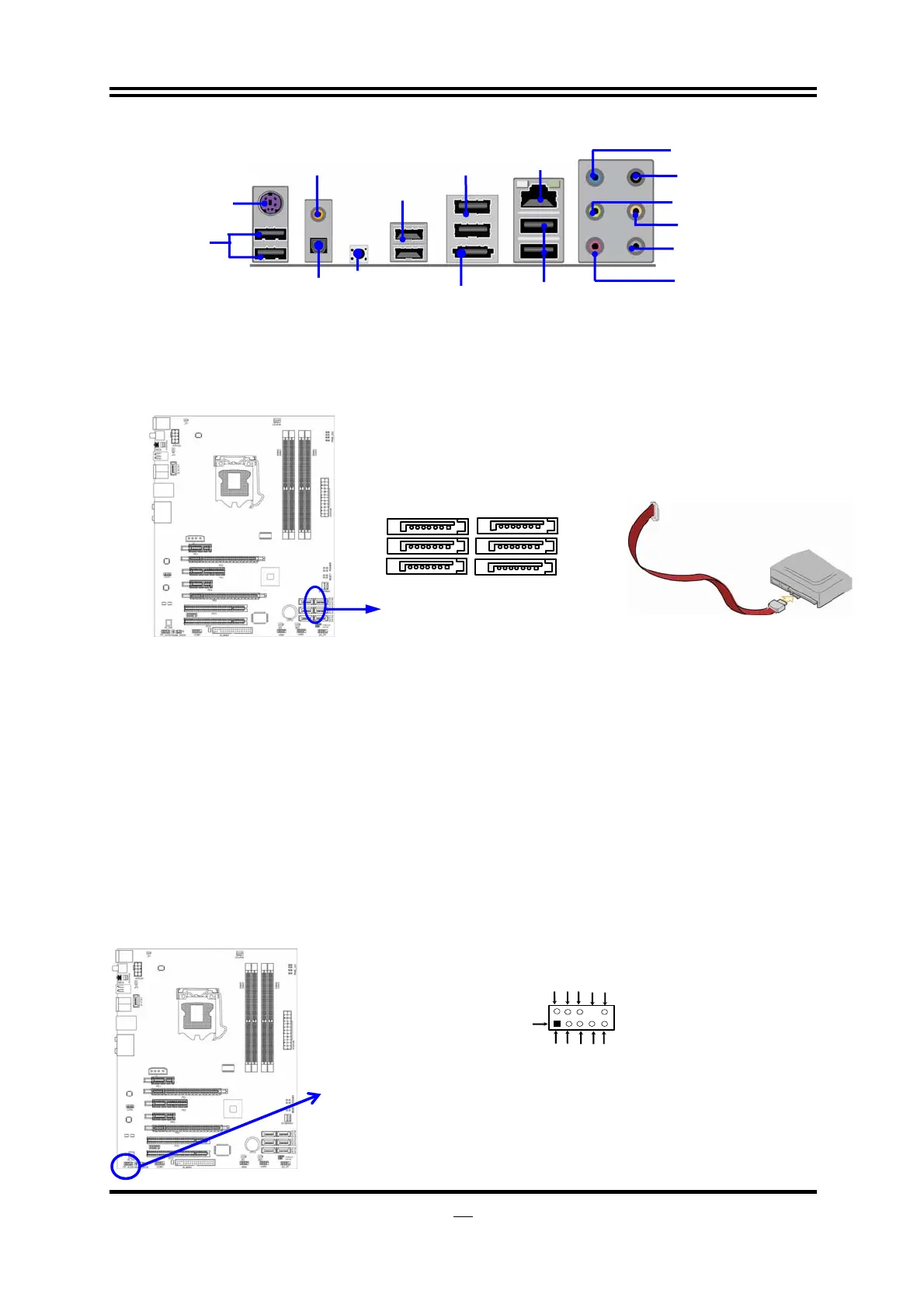

(8) Serial-ATA2 Port connectors: SATA1~SATA6
These connectors support the provided Serial ATA and Serial ATA2 IDE hard
disk cable to connect the motherboard and serial ATA2 hard disk drives.
Serial-ATA2 Compatible Connectors
SATA6
SATA4
SATA2
SATA5
SATA3
ATA1
(9)
ESATA Port: ESATA ports from US1
This ESATA support the External Serial ATA2 (eSATA) to enable the full SATA
interface speed outside the chassis.
(10)
SPDIF Out connectors: SPDIF_OUT1/SPDIF_OUT2
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only
when your stereo system has digital input function. SPDIF_OUT1 is a coaxial
SPDIF_OUT connector while SPDIF_OUT2 being optical SPDIF_OUT connector.
2-6-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): FP_AUDIO
These headers connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
AUDIO
Pin 1
Lineout2-L
Lineout2-R
Sense-FB
Audio-GND
LINE2-JD
Audio-JD
2
9
10
KEY
MIC2-L
MIC2-JD
MIC2-R
RJ-45 LAN
Coaxial
SPDIF_OUT
Optical
SPDIF_OUT
Line-IN
MIC-IN
PS/2 Keyboard
Connector
USB Connectors
RS-OUT
CS-OUT
ESATA
USB Connectors
USB Connectors
SS-OUT
CMOS1
To Next Page
