18

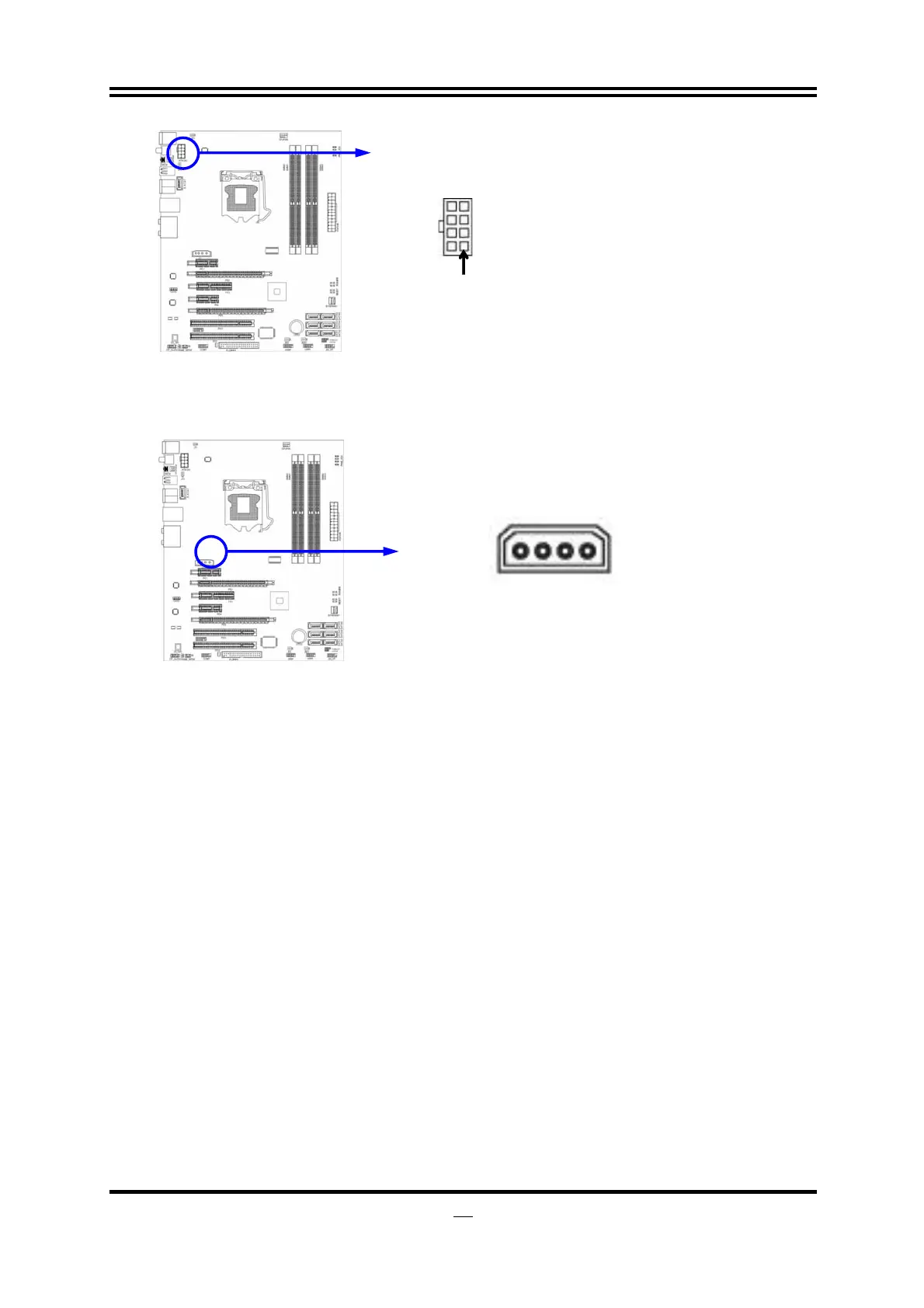

(3) Large 4-Pin Power Connector：J1
The connectors are 4-pin connector that supports extra 12V / 5V power to your
system
(4) PS/2 Keyboard Connector: P/S keyboard connector from UK1
The connectors are for PS/2 keyboard input devices.
(5) USB Port connector: USB post from UK1, US1, UL1, USB1
The connectors are 4-pin connectors that connect USB devices with the 480
Mbit / sec data transfer rate to the system board.
(6) LAN Port connector: RJ-45 LAN ports from UL1
This connector is standard RJ45 over USB connectors for Network connection.
The connector supports 10MB/100MB/1G B/s data transfer rate
(7) Audio Line-In, Lin-Out, MIC, RS-Out, CS-Out
，
SS-Out connector: AUDIO1
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC, RS-Out,
CS-Out
，
SS-Out audio connections.
Line-in: (BLUE)
Audio input to sound chip
Line-out: (GREEN)
Audio output to speaker
MIC: (PINK)
Microphone Connector
RS-OUT: (BLACK)
Rear-Surround audio output
CS-OUT: (ORANGE)
Center/ Subwoofer audio output
SS-OUT: (GRAY)
Side-Surround audio output
Pin 1
