5 Technical Reference
Motherboard Connectors

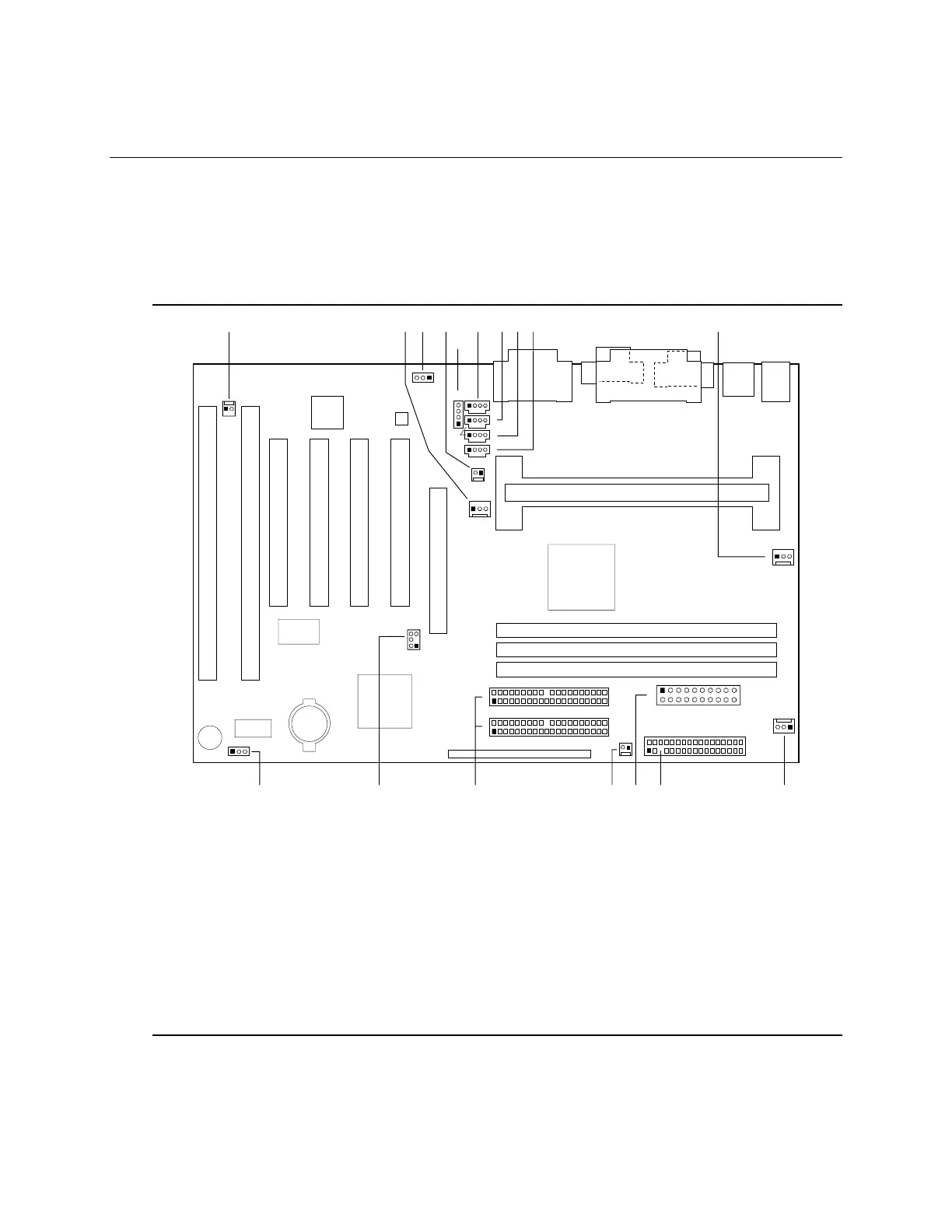

Figure 15 shows the location of some of the motherboard connectors.
OM07175
1
1
2
2
40
39
39
40
1
1
1
1
1
1
1
1
1
1
44
4
4
1
4
1
2
33
34
1
11
10
20
QOLN MP K
ADC F JB
E
IG H
1
1
5
6
2
A Wake on Ring I Video In (optional)
B Fan 3 J Processor active fan
C Wake on LAN technology (optional) K Fan 1
D Chassis intrusion (optional) L Diskette drive
E Legacy CD-ROM audio M Power supply
F CD-ROM audio (optional) N SCSI LED (optional)
G Telephony (optional) O IDE connectors
H Auxiliary Line In (optional) P PC/PCI
Q Configuration jumper block
Figure 15. Motherboard Connectors
