Motherboard Features
8
Components

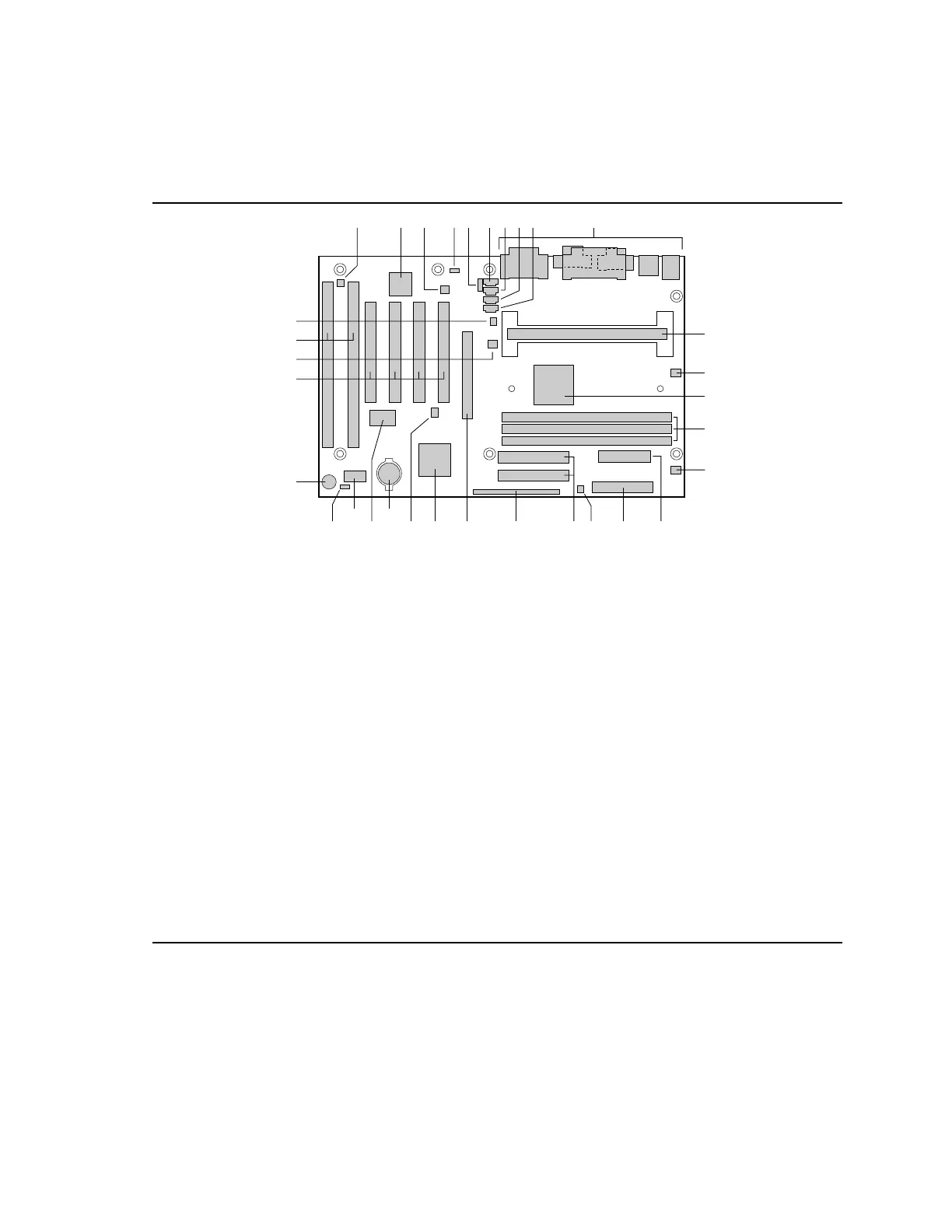

Figure 1 shows the major components on the motherboard.
OM07174
F JE
C
G H IA
L
K
M
N
O
AA
Z X
V
U QRWY S P
EE
BB
CC
DD
FF
DB
T
A Wake on Ring connector Q Diskette drive connector
B Yamaha YMF740 (DS1-L) PCI audio controller
(optional)
R SCSI LED connector (optional)
C Analog Devices AD1819A SoundPort
†
Codec
(optional)
S IDE connectors
D Wake on LAN
†
technology connector (optional) T Front panel connectors
E Legacy CD-ROM audio connector (optional) U Accelerated Graphics Port (AGP) connector
F CD-ROM audio connector (optional) V Intel 82371EB PCI ISA IDE Xcelerator (PIIX4E)
G Telephony connector (optional) W PC/PCI connector
H Auxiliary Line In connector (optional) X Battery
I Video In connector (optional) Y SMSC FDC37M707 Super I/O controller
J Back panel connectors Z Flash BIOS
K 242-contact slot connector AA Configuration jumper block
L Processor active fan connector BB Integrated speaker
M Intel
®
82443BX PCI/AGP controller CC PCI slots
N DIMM sockets DD Fan 3
O Fan 1 connector EE ISA slots
P Power supply connector FF Chassis intrusion connector (optional)
Figure 1. Motherboard Components
✏
NOTE
Components labeled optional do not come on all SE440BX-2 motherboards.
