3. Slide the top heatsink support bar onto the retaining pins of the support’s base as shown in
Figure 6.
A
OM07179
B
A Heatsink support bar
B Retaining pins

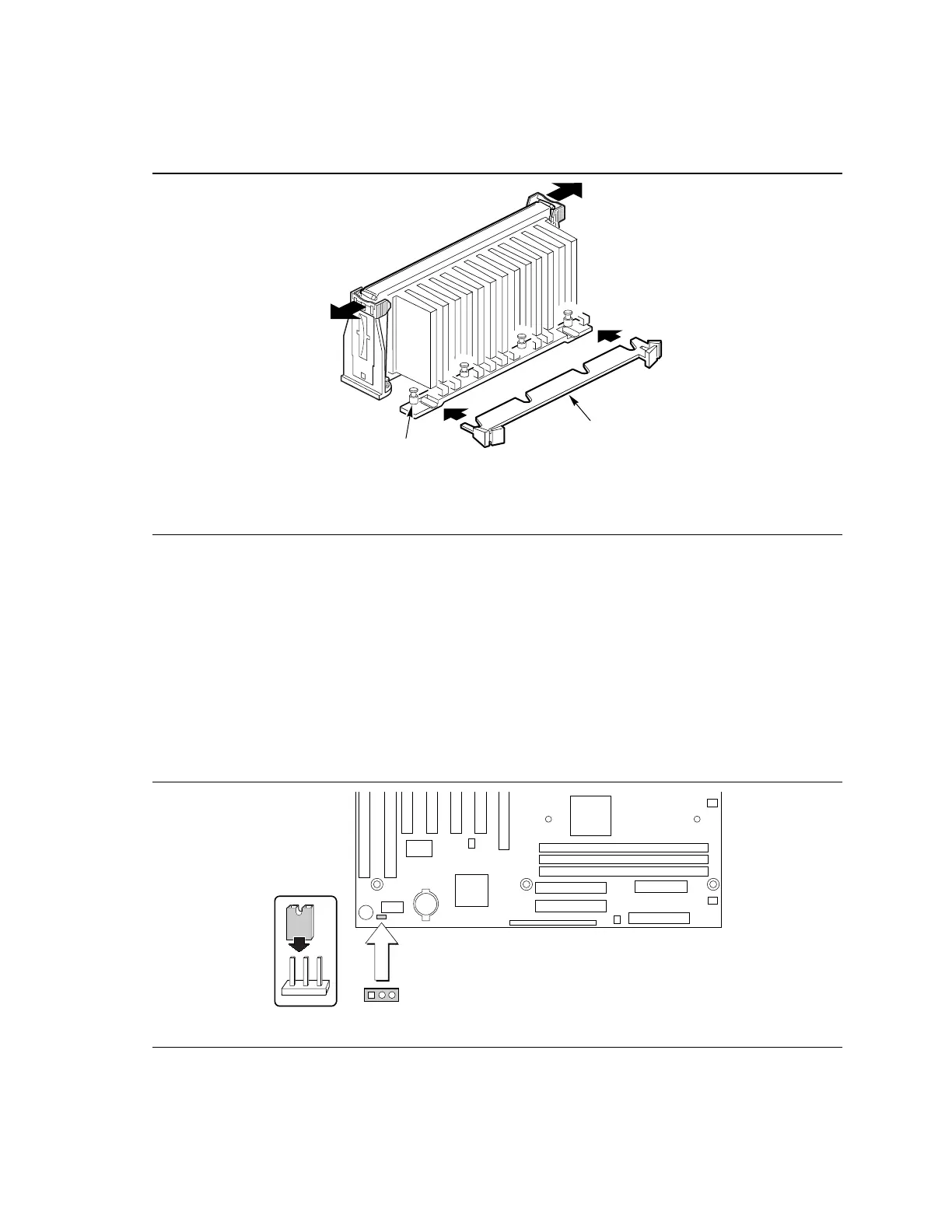

Figure 6. Installing the Heatsink Support Top Bar
How to Set the Processor Speed
Set the processor speed after you have installed or upgraded the processor. This procedure
assumes that the motherboard is installed in the computer and the configuration jumper block is set
to normal mode.
Figure 7 shows the location of the configuration jumper block on the motherboard. The jumper is
set to normal mode at the factory.
OM07285
31
J8A1
Figure 7. Location of the Configuration Jumper Block
