SE440BX-2 Motherboard Product Guide
9
Back Panel I/O Connectors
Figure 2 shows the back panel I/O connectors on the motherboard.
OM07287
BD E
H
IKJ
A
G
F
C
A PS/2
keyboard or mouse G Serial Port B
B PS/2 keyboard or mouse H MIDI/game Port (optional)
C USB Port 1 I Audio Line Out (optional)
D USB Port 0 J Audio Line In (optional)
E Serial Port A K Audio Mic In (optional)
F Parallel Port

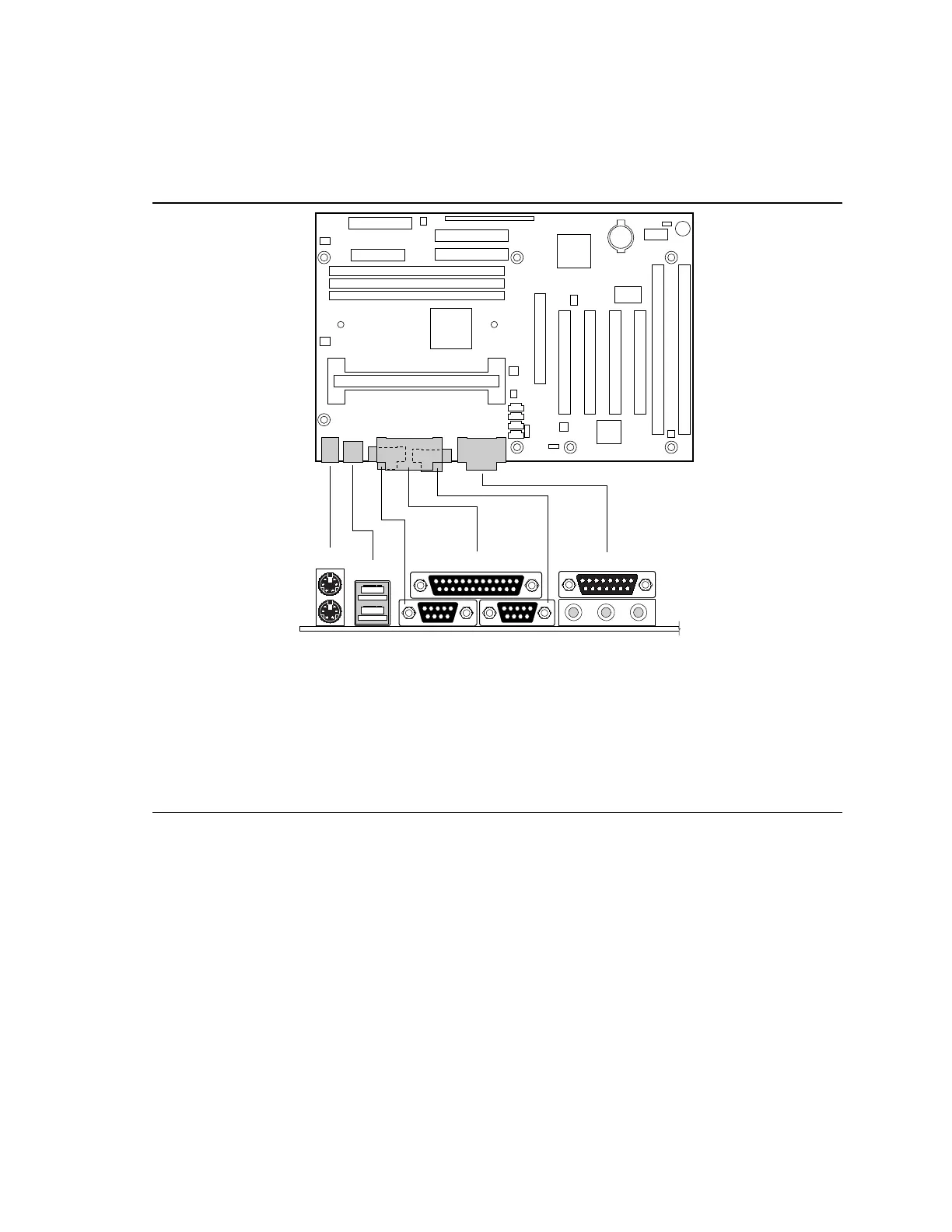

Figure 2. Back Panel I/O Connectors
