Server Board Jumpers
OM10683
1
1J15
28
7
6
5
12
11
10
9
4
3
1L4
1
28
7
6
5
12
11
10
9
4
3

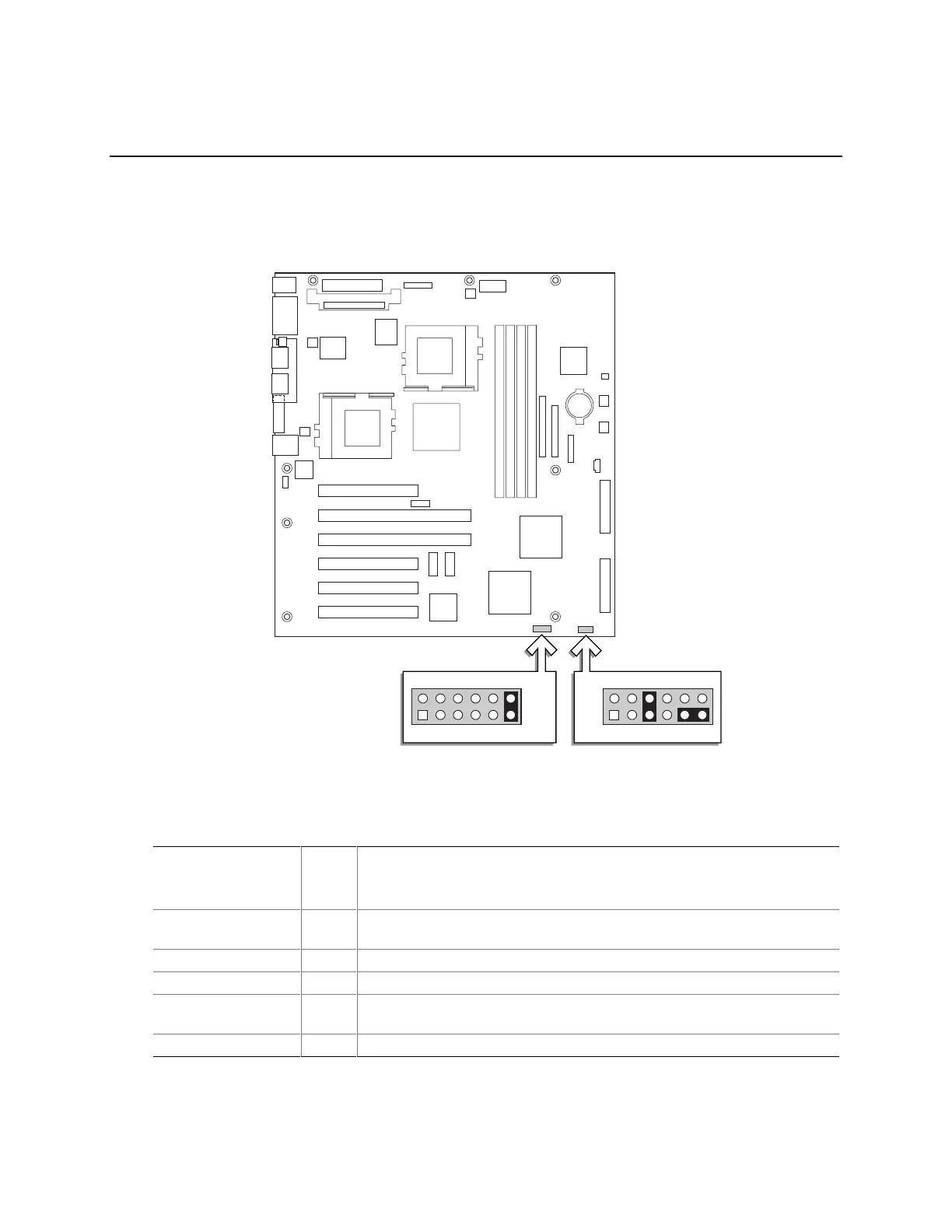

Figure 14. Jumper Locations
Table 6. Configuration Jumper (1J15)
Jumper Name Pins What it does at system reset
CMOS clear 1-2 If these pins are jumpered, the CMOS settings will be cleared on the next
reset. These pins should not be jumpered for normal operation.
Password Disable 3-4 If these pins are jumpered, the password will be cleared on the next reset.
These pins should not be jumpered for normal operation.
Reserved 5-6 Reserved. These pins should not be jumpered for normal operation.
Reserved 7-8 Reserved. These pins should not be jumpered for normal operation.
Reserved 9-10 If these pins are jumpered, the system will attempt BIOS recovery. These
pins should not be jumpered for normal operation.
Reserved 11-12 Reserved. These pins should be jumpered for normal operation.
