Intelbras AMT 2018 E - Auxiliary Output; Telephone Output

12
1.6. Auxiliary output
Output is used to power accessories such as infrared sensors, remote keypad, etc.
It is recommended that you use 4 X 26 AWG gauge cable (approximately 0.41 mm
diameter of the metal part of the wire).
Attention: when connecting, observe polarity (+/-). Maximum allowed current: 1.2 A.
To cancel the keyboard zones connect the blue and white
wires to the Common, black wire, of the 6-way cable
1.7. Telephone output
It is the exit of the telephone line, connect to it the wires intended for the telephone
sets installed in the place.

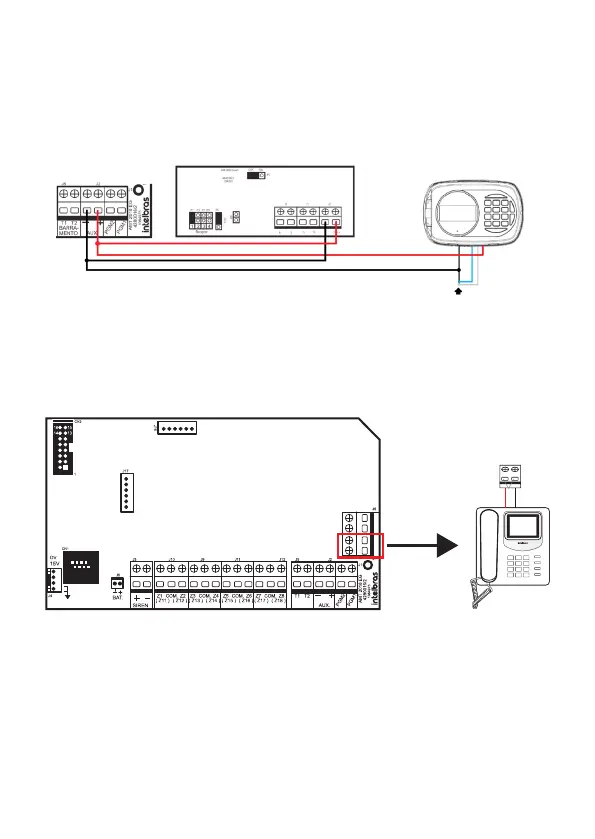

Alarm Center
BUS
Telephone
Line
Telephone
ZONES
ZONES
ZONES
ZONES
