1.1. Power supply board connector
When purchasing the alarm center, a complementary kit containing resistors, cables
and guides is provided to the user.

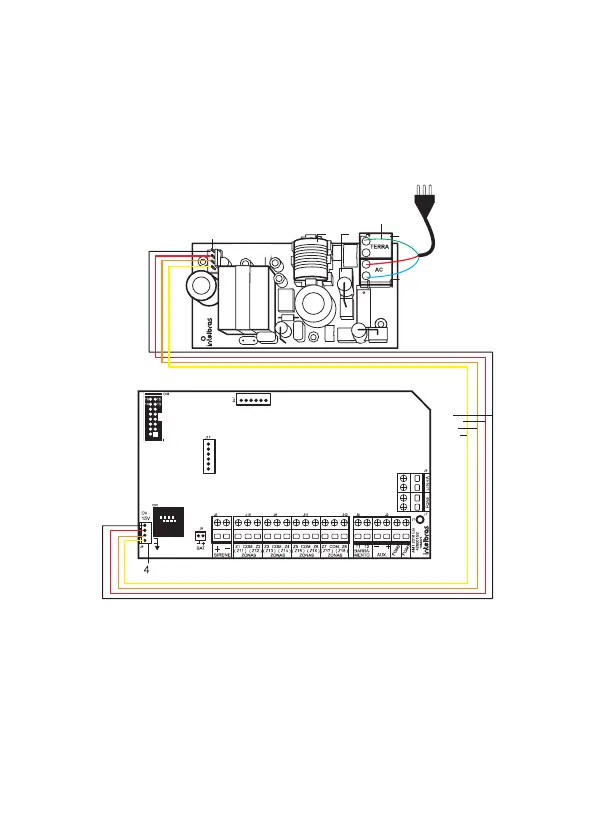

Before starting to use the product it is necessary to integrate the main and power
supply boards. This process must be done manually by connecting the 4-way cable
from connector J4 on the main board to connector CN3 on the power supply board.
Ground
Connect to electrical network
Power supply for the alarm center
Power supply
14.5 V/1.8 A
Alarm center
Yellow
Orange
Black
4
3
Red
21
5
1. PTH fuse 5,1x20 Delay 250 V/1 A.
2. PTH fuse 5,1x20 Delay 250 V/1 A.
3. 90 and 265 Vac mains input - full range, i.e., without the need for a voltage selec-
tor switch. This way, even if some variation of voltage occurs in the power grid, the
center will continue working normally.
4. Ground.
5. 14.5 Vdc/1.8 A DC output to power the alarm center, meeting the needs of most
installations.
