Intelbras AMT 2018 E - Page 15

15
Center zone Sensor
ZONES ZONES

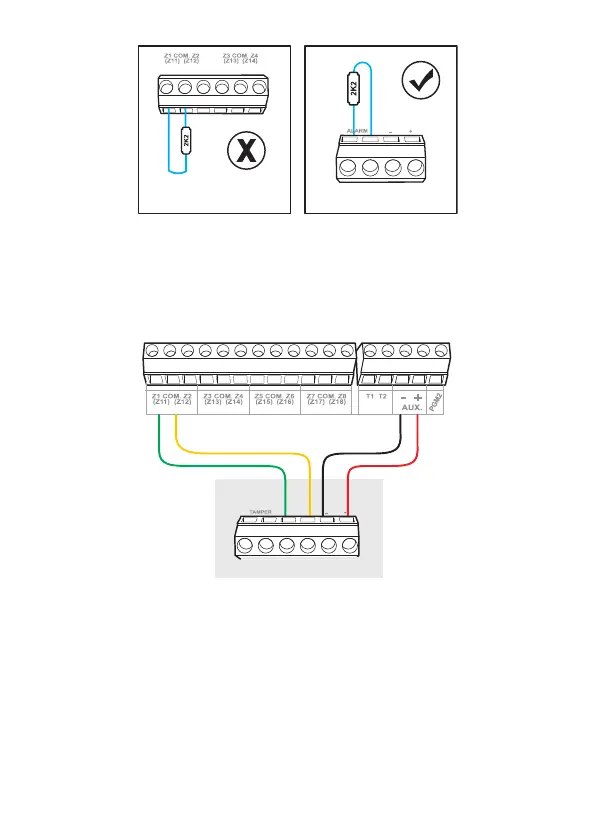

(0) Single zone without end-of-line resistor
This standard connection mode is the simplest, but the most vulnerable to sabotage,
because if the sensor wire is short circuited, the alarm center will not recognize the
problem.
Alarm center
ZONES
ZONES
ZONES
ZONES
BUS
ALARM
Alarm center
Sensor
