18

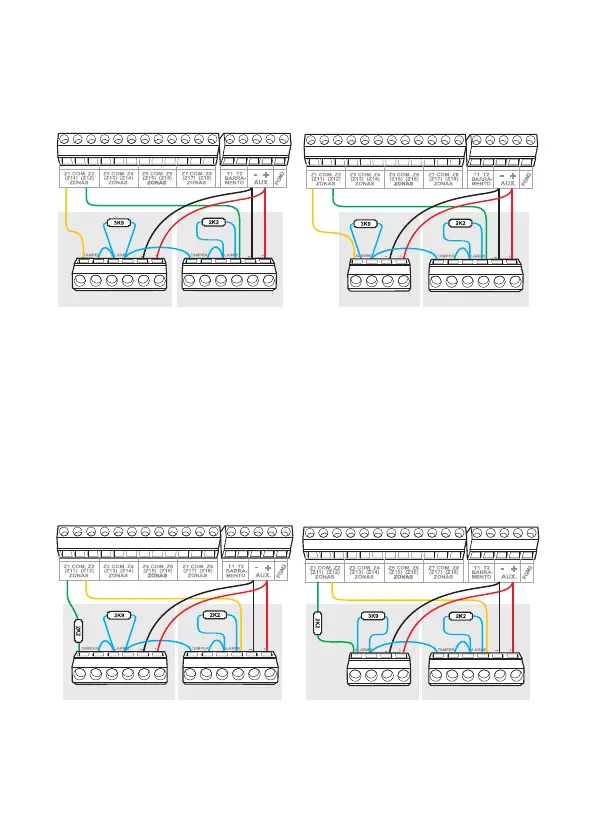

(5) Dual zone without end-of-line resistor and with tamper detection
Since the connection mode applies to all zones, see below for the connection method
for tampered and un-tampered sensors.
Alarm center
Zone 11 sensor Zone 1 sensor
Alarm center
Zone 11 Sensor Zone 1 sensor
Connecting the two sensors with tamper Connection of sensor 11 without tamper
and sensor 1 with tamper
(6) Dual zone with end of line resistor, tamper and wiring short circuit
detection
It is recommended to congure the center in this mode, because although it is the
most complex to connect the sensors, it is also the one that offers the highest security
for the alarm system. Since the connection mode applies to all zones, refer to the
following diagrams for the connection of sensors with tamper and sensors without
tamper.
Alarm center
Zone 11 sensor Zone 1 sensor
Sensor connection with tamper
Alarm center
Zone 11 sensor Zone 1 sensor
Sensor connection without tamper
