As in all gears, the gear ratio of the Harmonic Drive is the ratio of the input speed
to the output speed. If the number of teeth on the flexspline is N
f
, then for every
revolution of the input shaft, the output shaft rotates by 2/N
f
of a revolution (that
is, two teeth out of N
f
teeth). Hence:
HD gear ratio =
1



2
N
f



=
N
f
2
The Harmonic Drive gear ratio for axis 1 and axis 2 of the SCORA-ER 14 is 160:1

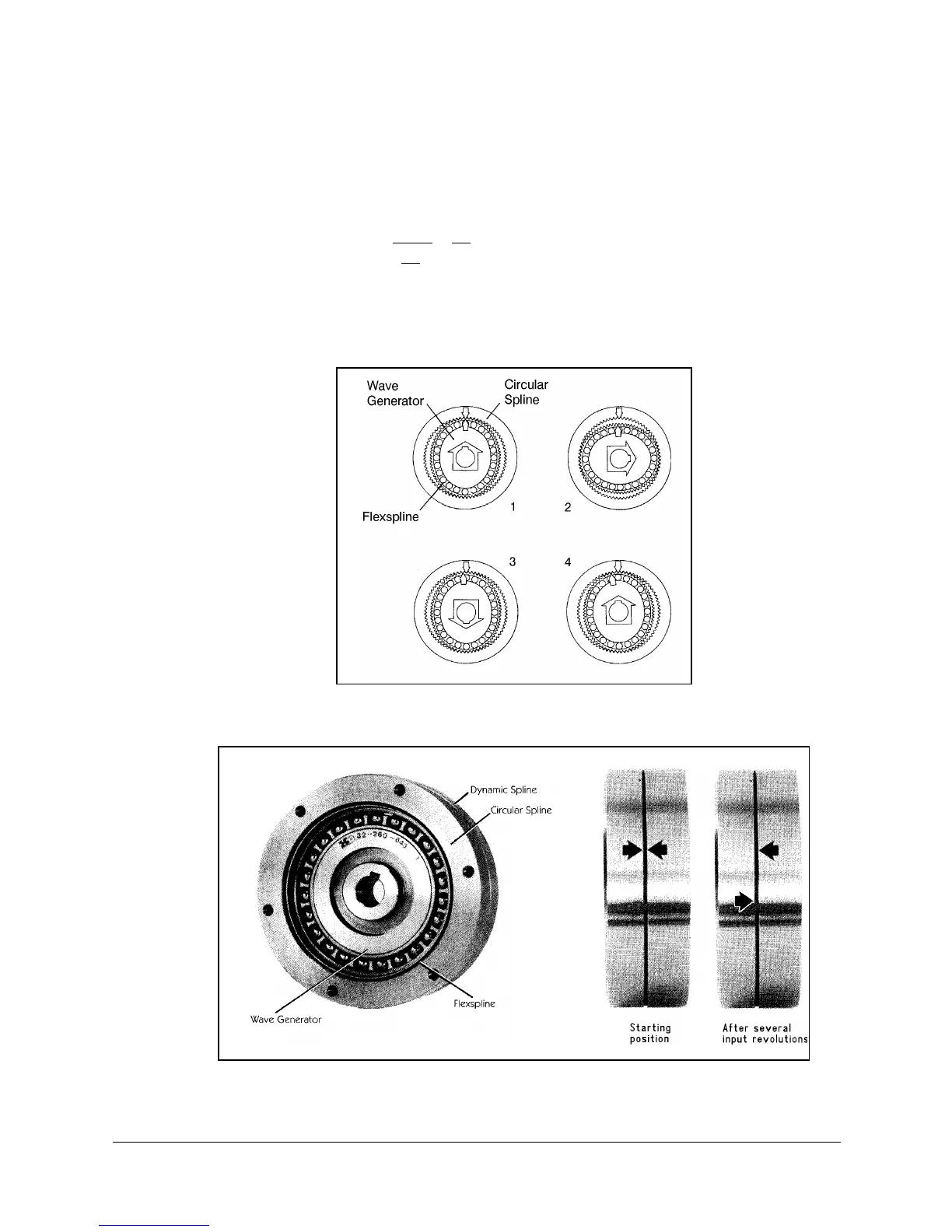

Figure 6-10: Operation of the Harmonic Drive
Figure 6-9: Operation of the Harmonic Drive
