Operating the ACU
ACU Soft Keys Normal Mode
Start Up
With the system installed and power applied, the ACU screen will show
the following sequence:
Note: The operation method is exactly same for i3, i3L, i4, and i4P.
The following instruction will be described using the i3 as example.
1. Data communication is being established
between the antenna and the ACU. The ACU
is initialized.
2. The antenna is initialized.
3. The antenna is searching for Satellite A.
4. The antenna has located the satellite and is
now tracking.
INITIALIZE ACU
INITIALIZE ANTENNA
SEARCH A: DTV101
TRACKING A: DTV101
INTELLIAN I3
INTELLIAN I3
B:DTV119 SETUP
B:DTV119 SETUP

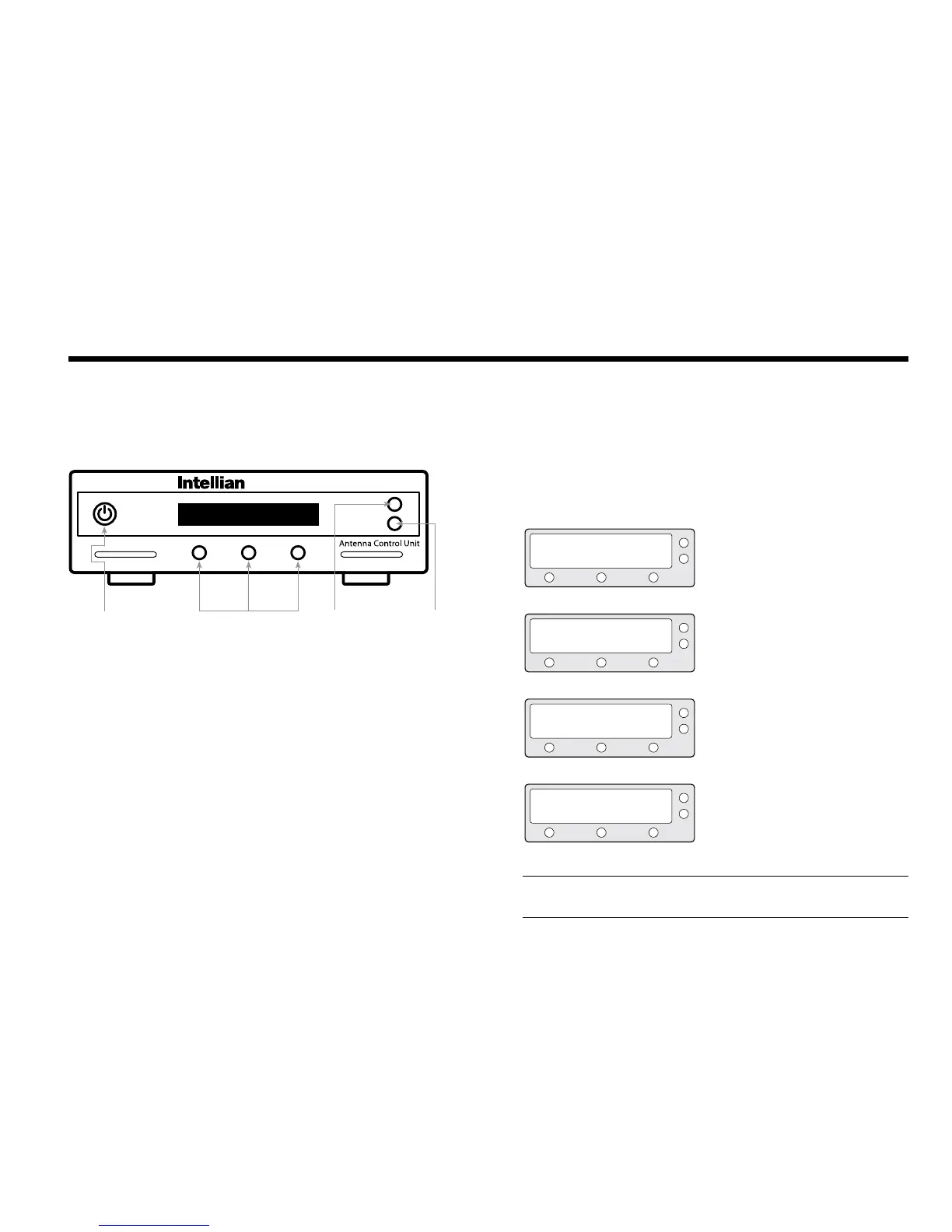

Figure 25 : ACU Soft Keys
To Next Page
