1. Refer to the drawing on the right.
2. Rotate antenna left and right slowly until the limit switch is pressed.
3. Turn the antenna by 360° to the reverse direction.
4. Insert the shipping foams in front of the dish and back side of the pedestal to
secure the pedestal in position with the bottom radome.
5. Cover upper part of radome. Be careful not to touch the reector
when assembling upper part of radome.
6. Pack Intellian i3/i3L/i4/i4P into the original package box.
NOTE : Don’t rotate it quickly, or you may damage the antenna limit system.
Preparation for Transportation
This is to describe how to prepare the antenna internally for transportation.
The following procedures to secure the antenna shall be strictly observed to protect it from being damaged during transportation.
Shipping Foam
Shipping Foam

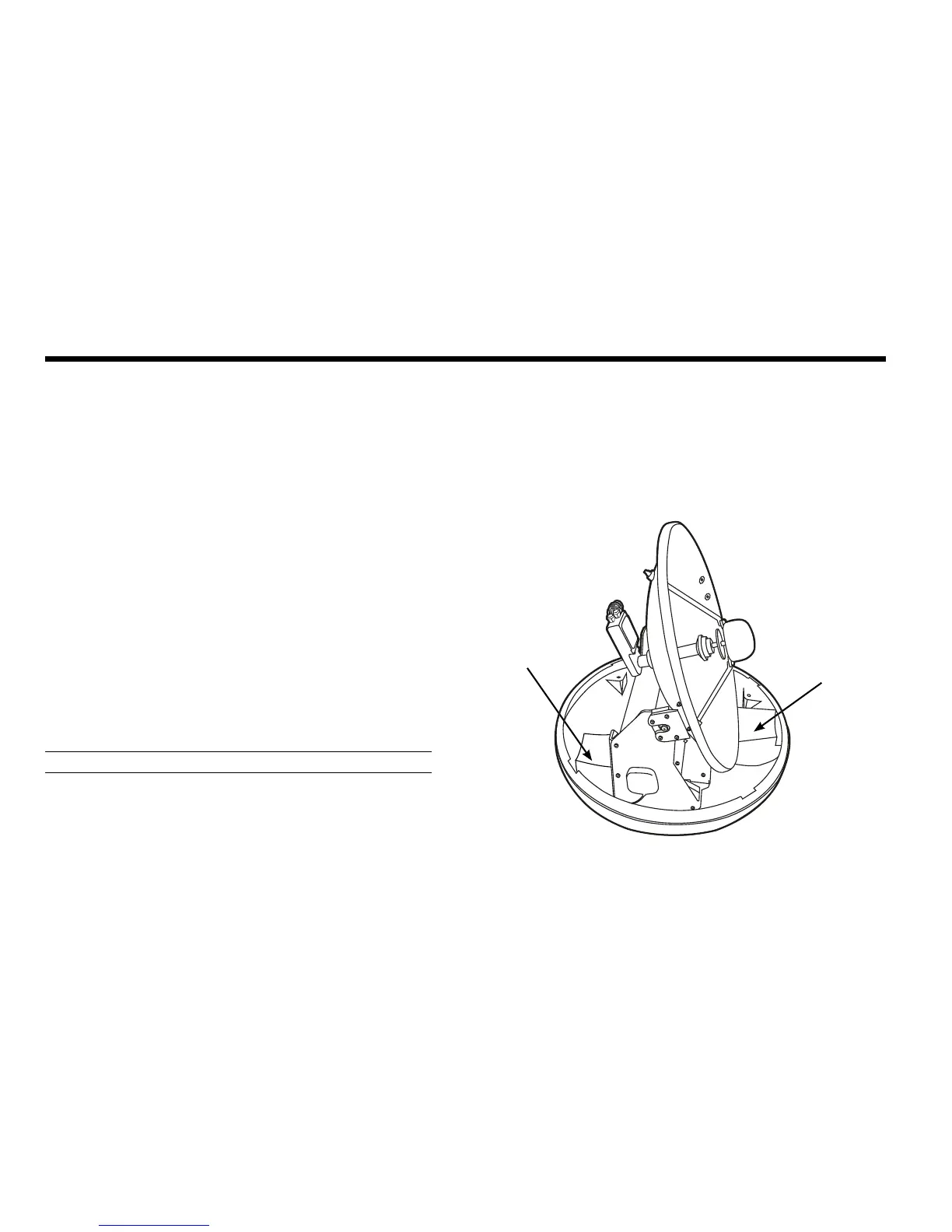

Figure 38 : Preparation for Transportation
